Description

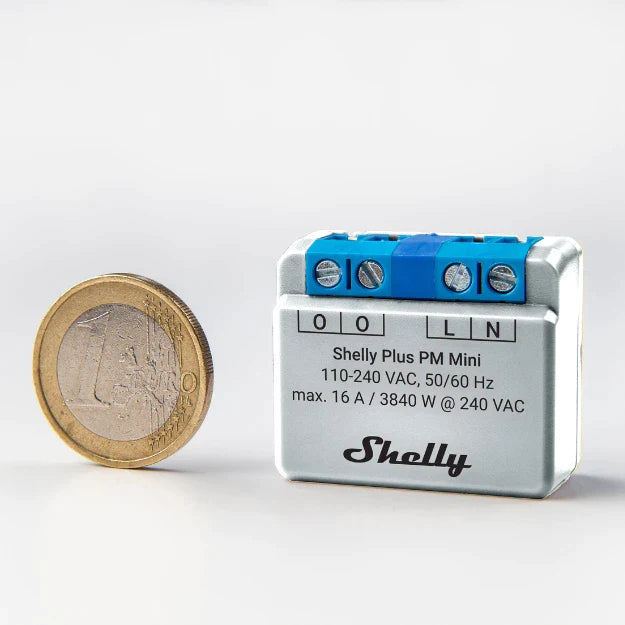

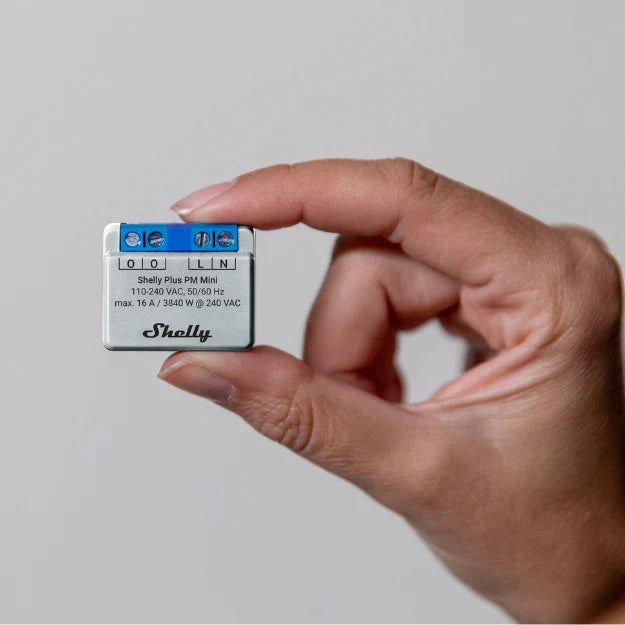

Shelly Plus PM Mini: monitoring and power control without complications
O Shelly Plus PM Mini It is the energy meter Wifi definitive that binds to your home network without the need for a hub. Offers precise monitoring of energy, allowing you to save energy and money. Creates schedules intelligent for automate your devices and use URL For perfect control of the devices. With capabilities in script, it is highly customizable.
This device was conceived exclusively for monitoring energy consumption and is ideal for home appliances that must remain connected. Supports both local and cloud, it is easily integrated with automation systems and guarantees the data security with grinding TLS. O Shelly Plus PM Mini give you the power to conveniently manage your energy consumption and automation.
Product characteristics:
Brand: Shelly
Model: Shelly Plus PM Mini
Connectivity: Wifi, Bluetooth
Application: Shelly Cloud (Android, iOS)
Dimensions: 29x34x16 ± 0.5 mm
Weight: 13 ± 1 g
Color white
Assembly: Wall Box
Maximum screw terminal torque: 0.4 nm / 3.5 lbin
Driver cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
Drunk driver length: 5 to 6 mm / 0.20 to 0.24 in
Enclosure Material: Plastic
Ambient temperature: -20 ° C to 40 ° C / -5 ° F to 105 ° F
Humidity: 30 % to 70 % rh
Maximum altitude: 2000 m / 6562 feet
Electric power: 110 - 240 VAC
External Protection: 16 A, B or C shooting characteristics,
Energy Consumption: <1.2 W
Maximum measurement voltage: 240 VAC
Maximum measurement current: 16 a
Maximum measurement power: 3840 W
Power measurement: yes
Voltage / Cut protection: No
Protection / Current Cut: No
Maximum power protection / cut: no
Internal Temperature Sensor: Yes
CPU: ESP32
Flash: 4 MB
Includes:
1x Shelly Plus PM Mini
1x user manual
Reference: SHPMINIPM
Bar Code: 3800235265673
