Description

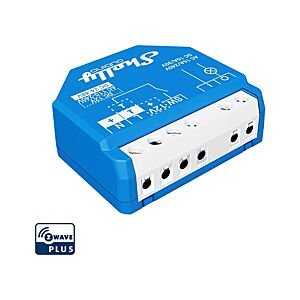

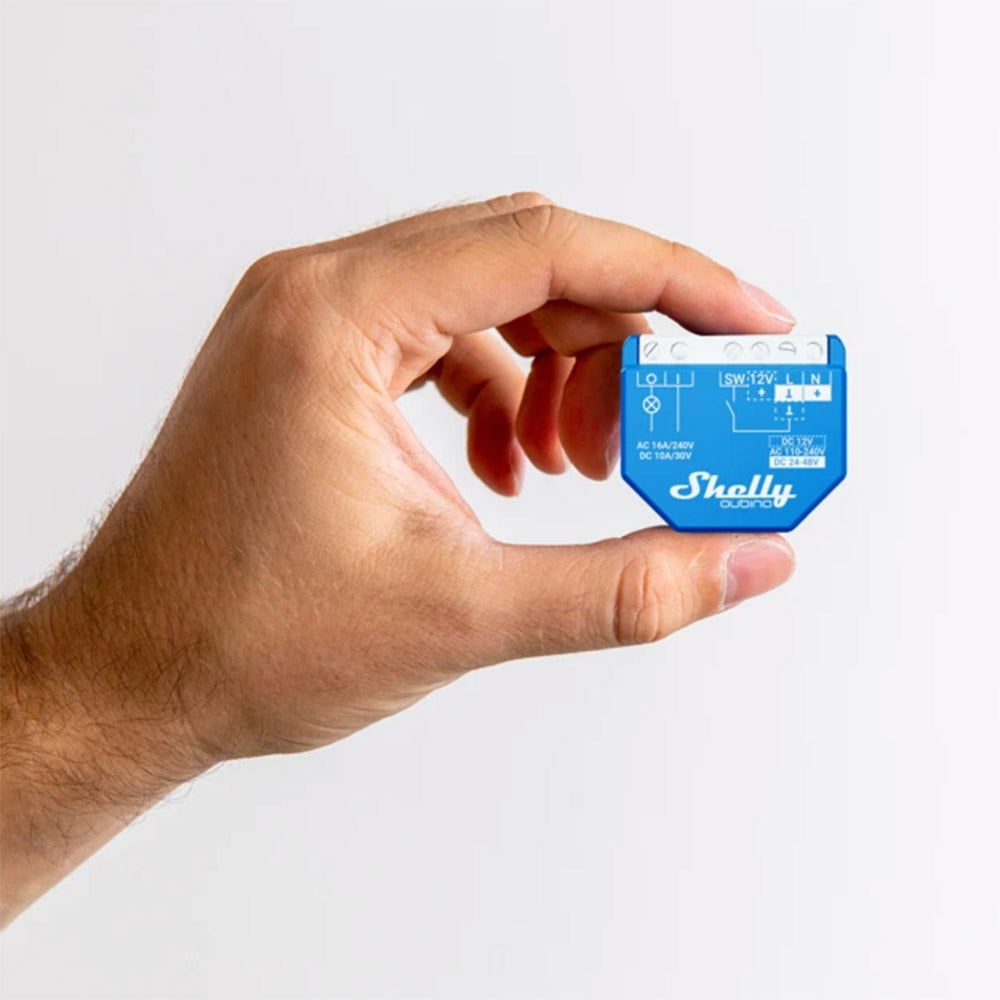

Shelly Qubino Wave 1 - Z-Wave 1 switch module for Z-Wave automation 1, 16 Amperes for dry contacts.
The Shelly Qubino Wave 1 switch module for Z-Wave™ automation with 1 channel and 16 A capacity is designed to control a wide range of devices and office equipment, such as electric locks, gates, garage doors, irrigation systems, LED strips, lights and sockets.
The module works with voltages of 110-240V AC, 12V DC or 24-48V DC. This makes it perfect for controlling appliances or systems that use voltages not necessarily equal to the Wave 1 power supply (such as garage doors or irrigation systems).
The Shelly Qubino Wave 1 is a module from the Shelly Qubino series that works with Z-Wave and can communicate perfectly with other devices using this technology, regardless of their brand or platform, however, a centralized smart hub is required for this communication.

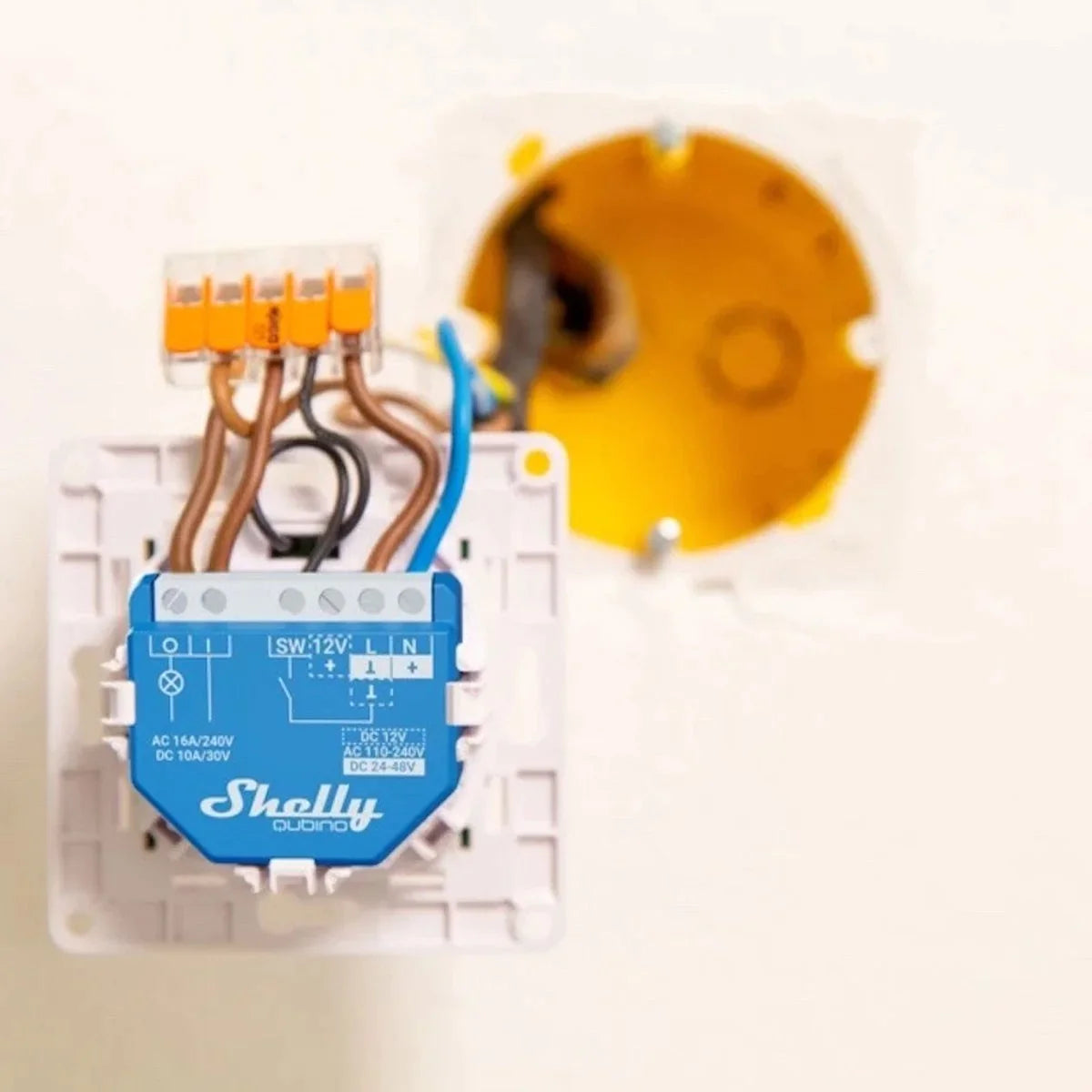

The Wave 1 was designed to be installed behind any switch or socket, instantly transforming it into a smart device.
Once installed, you can include it in your Z-Wave network and control the lights or appliances connected to the socket from anywhere using your smartphone or tablet.
Product features:
Brand: Shelly
Model: Qubino Z-Wave 1
Power supply: 110-240V AC / 24-48V DC / 12V DC ± 10%
Energy consumption: < 0.3 W
Potential-free contact: Yes (dry contact)
Maximum AC switching voltage/current: 240V / 16 A
Maximum DC switching voltage/current: 30V / 10 A
CPU: Z-Wave™ S800 (System-in-package)
Z-Wave communication:
· Frequencies: Sub-G (from 868.4 to 920.9 MHz)
· Z-Wave™ repeater: Yes
· Range: Up to 40m indoors (depends on local conditions)
Overheating protection: Yes
Conductor cross-section: 0.5 to 1.5 mm² (20 to 16 AWG)
Housing material: Plastic
Ambient temperature: -20°C to 40°C
Humidity: 30% to 70% RH
Includes:
1 x Shelly Qubino Wave 1
1x Instruction Manual
