Description

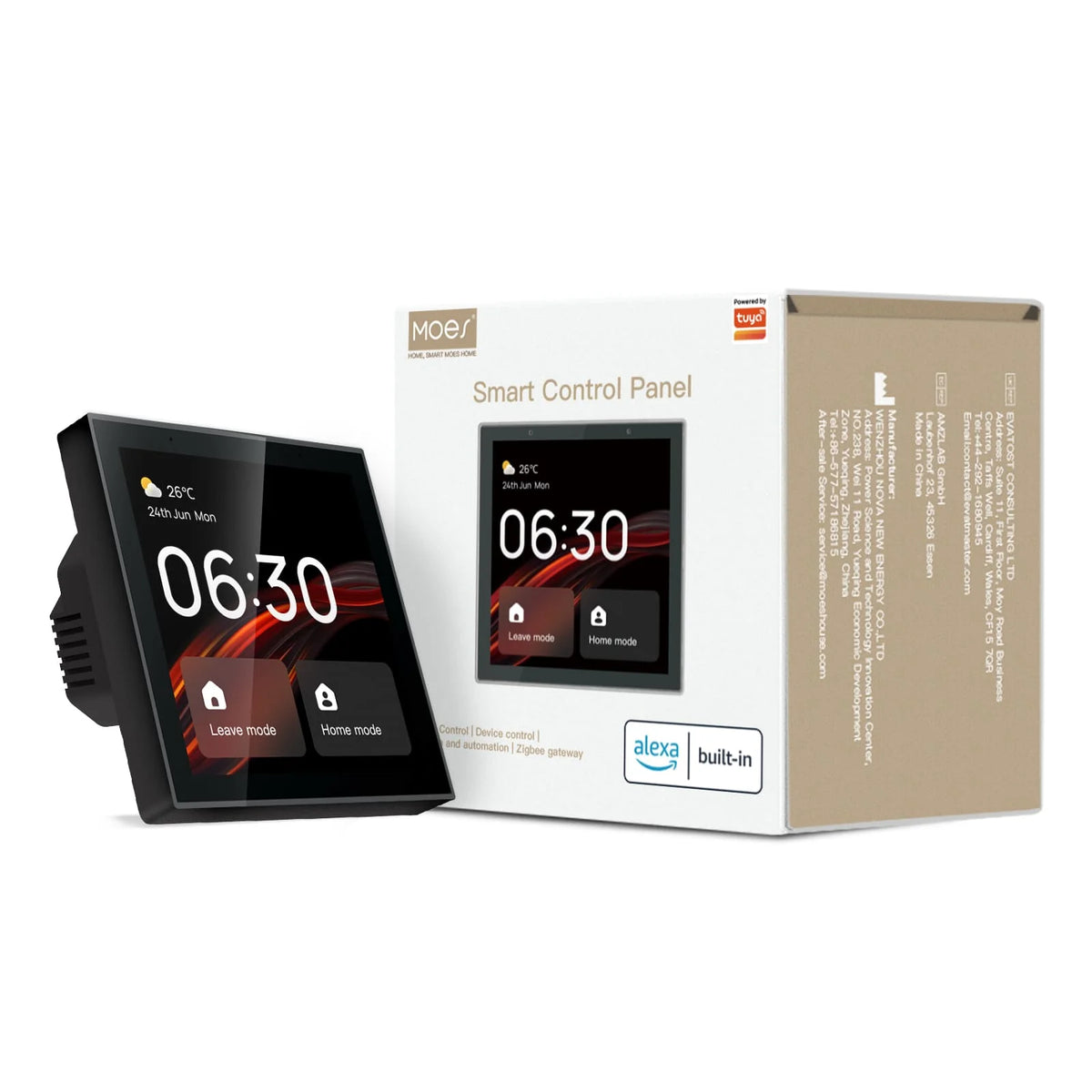

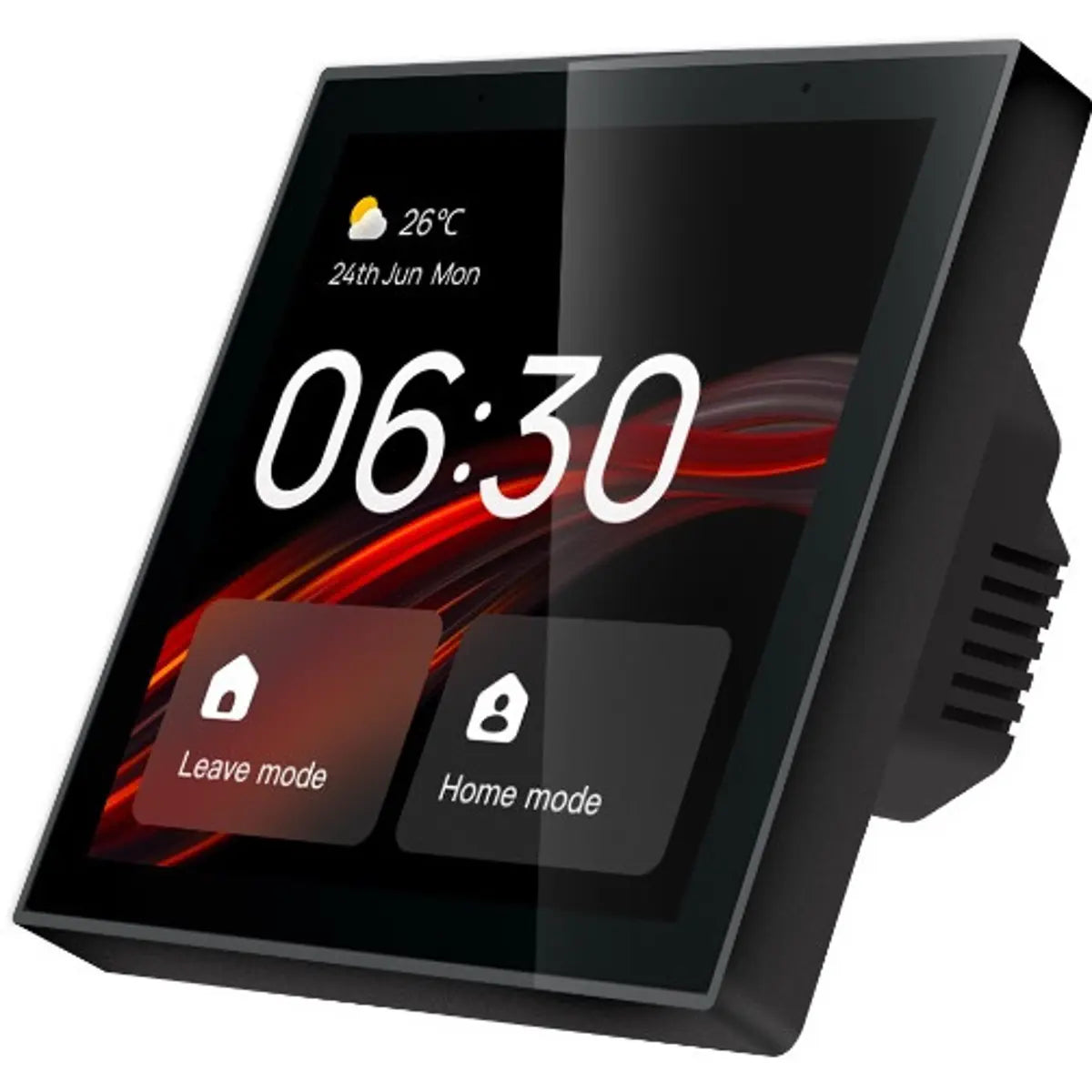

4" Smart Control Panel with Alexa Built-in
The heart of your smart home in a wall switch
The Smartify Smart Control Panel is a 4-inch Smart WiFi+Zigbee device that redefines the smart home. With a Linux-based operating system for a smoother experience, it controls all Smartify devices and other SmartLife or Tuya smart devices, such as sensors, security cameras, switches, and light bulbs.
The Alexa built-in allows you to control your devices via voice commands. The home page is completely customizable, showing the time, devices, and smart scenes for intuitive management.
Main features
Integrated Zigbee Hub: Zigbee and WiFi integration for up to 100 Zigbee devices without the need for an additional gateway.
Alexa built-in: Voice control for all your smart devices.
4" Touchscreen: 480x480 resolution with an intuitive and customizable interface.
Two-way microphone: Use the panel as an intercom.
Integrated camera: Real-time viewing of your security cameras.
Remote control: Through the SmartLife app, from anywhere in the world.
Simple installation: European switch format, 86x86 box, no electrician required.
Product characteristics
Brand: Smartify
Model: SYSVCPANEL
Screen: 4 inches, 480x480
Chipset: Rockchip RK3308B-S, Quad-core ARM Cortex-A35, 1.3 GHz
Memory: 256 MB Flash + 256 MB DDR
Connectivity: WiFi 2.4 GHz, Bluetooth, Zigbee
WiFi: Realtek RTL8723DS, 2.4 GHz
Zigbee: Tuya TYZS13
Microphones: 2
Speaker: 1
Power supply: 100-240V AC, 50/60 Hz
Rated current: 74 mA
Consumption: 3.65 W (working) / 2.5 W (standby)
Dimensions: 86 x 86 x 10.5 mm (without base) / 86 x 86 x 36.3 mm (with base)
Weight: 198 g
Color: Black
Working temperature: 0°C to 40°C
Humidity: 5% to 90% RH
App: SmartLife (iOS and Android)
What's in the box
1x Smartify Smart Control Panel
1x Instruction manual
2x Screws
Reference: SYSVCPANEL
Barcode: 0729208074599
