Description
Ajax Button white panic button with Jeweller
Immediate alert and scenario control in the Ajax system

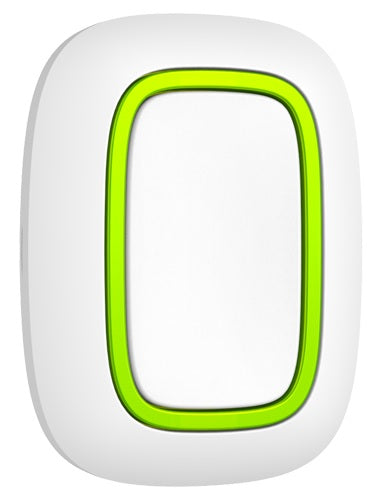

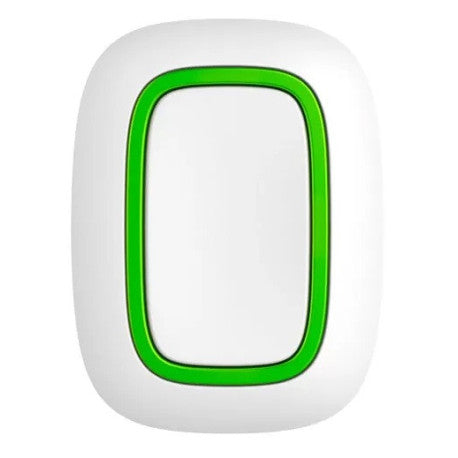

The white Ajax Button is a wireless button for Ajax systems that can work as a panic button or as a command for automation scenarios. In panic mode, it sends an alert to users and to the monitoring center. In control mode, it allows Ajax automation devices to be triggered with a short or long press.
The compact body makes it easy to use every day: it can be carried on the wrist, around the neck, or on a keyring. Protection against accidental presses can be configured with a long press or double press, helping to avoid false alarms.
Usage example
Place the Ajax Button next to the bed, at reception, on the service counter, or give it to a vulnerable person. In an emergency, simply press the button to send the alert through the Ajax system.
Product specifications
Brand: Ajax
Model: Button Jeweller
Reference: AJ-BUTTON-W
Color: White
Type: Wireless panic button / scenario controller
Connectivity: Jeweller 868 MHz
Communication range: up to 1,300 m in open space
Accidental press protection: double press or long press
Power supply: 1 CR2032 battery, 3 V
Estimated battery life: up to 5 years, depending on use
Protection rating: IP55
Operating temperature: -10 °C to +40 °C
Permissible humidity: up to 75%
Dimensions: 47 x 35 x 13 mm
Weight: 16 g
App: Ajax app for iOS, Android, macOS and Windows
Compatibility
Compatible with Ajax hubs and compatible ReX repeaters. Configuration is done in the Ajax app.
Includes
1 x white Ajax Button
1 x pre-installed CR2032 battery
1 x double-sided adhesive tape
1 x instruction manual
Barcode: 4823114014970
Internal reference: AJBTBR
