Description

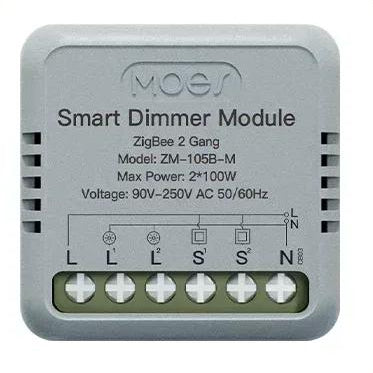

MOES ZM-105B-M - 2-Channel Zigbee Dimmer Module
Mini Zigbee 3.0 dimmer module for brightness control on 2 circuits
The MOES ZM-105B-M is a Zigbee 3.0 dimmer module with ultra-compact dimensions (40x40x18mm) that allows you to regulate the light intensity of 2 independent lighting circuits from a single module hidden in the switch box. With 0-100% brightness control per channel, it transforms traditional switches into smart dimmers without replacing the existing switch.
Compatible with the Smart Life and Tuya apps, it offers remote control, automations, timers, schedules, and voice control via Alexa and Google Home. Requires a Zigbee gateway (sold separately).
Main features
- Zigbee 3.0 protocol for reliable mesh network communication
- 2 independent channels with 0-100% brightness control
- Compatible with reset (momentary) switches
- Works as a 1-way or 2-way circuit per channel
- Relay status memory after power reset
- Schedules, timers, and countdown via app
- Control sharing with family members

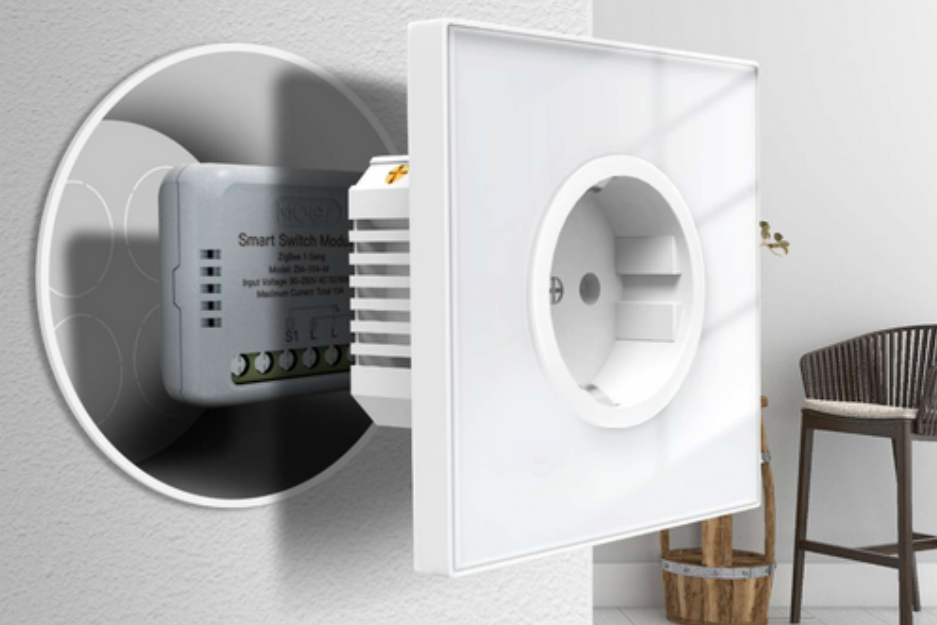

- Simple installation inside the wall box
Technical specifications
- Wireless protocol: Zigbee 3.0
- Supply voltage: AC 90-250V, 50/60Hz
- Maximum power: 2×50W (110V) / 2×100W (220V)
- Maximum current: 2.5A
- Protection rating: IP20
- Operating temperature: 0°C to +40°C
- Case temperature: Tc +80°C (max.)

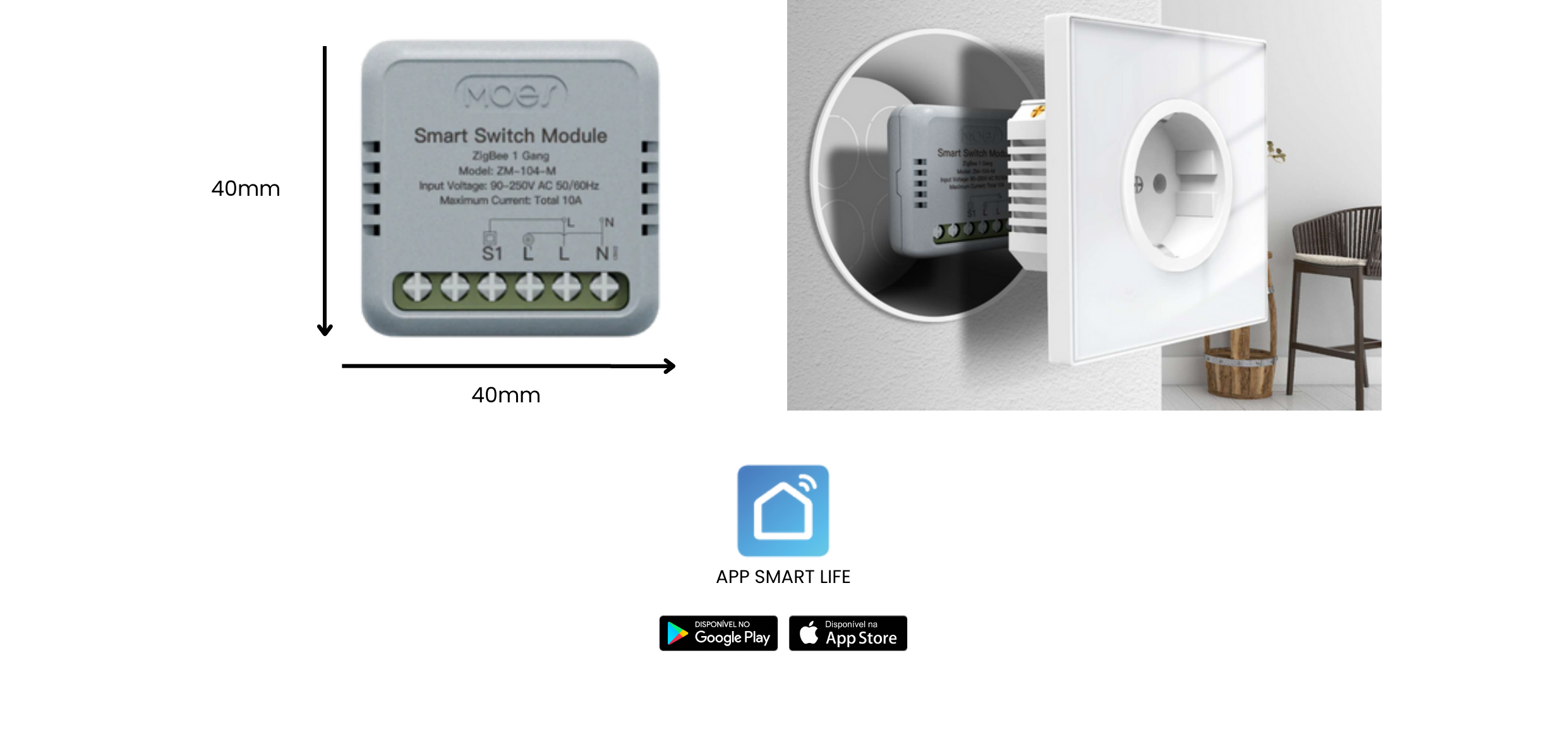

- Dimensions: 40 × 40 × 18 mm
- Warranty: 2 years
Compatibility
- Smart Life
- Tuya Smart
- Google Home
- Amazon Alexa
Package content
- 1x MOES ZM-105B-M Zigbee 2-Channel Dimmer Module
- Instruction manual
Barcode: 6974246476247
Reference: MOZM-105B
