Description
Human presence sensor mmWave + PIR Zigbee with motion and immobility detection

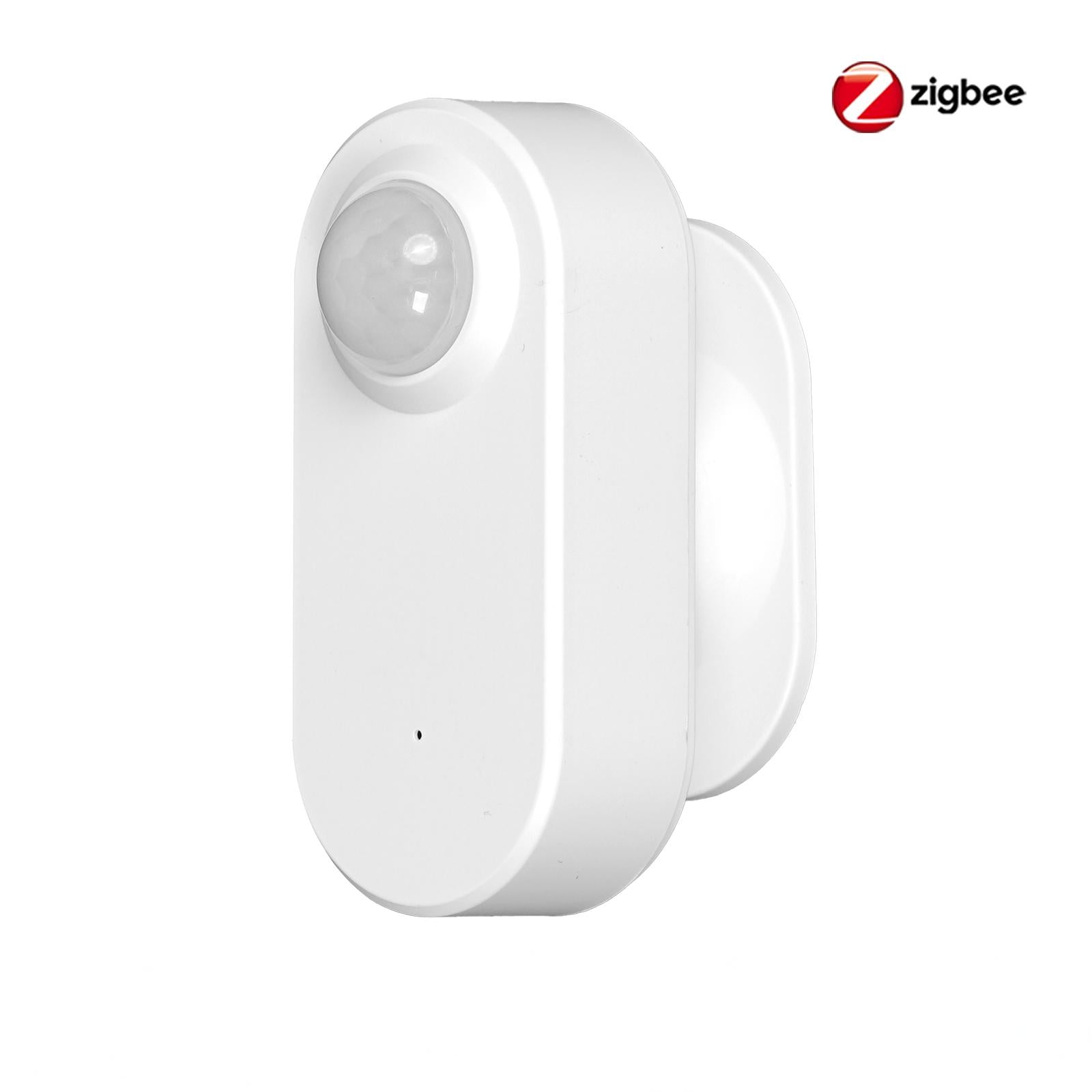

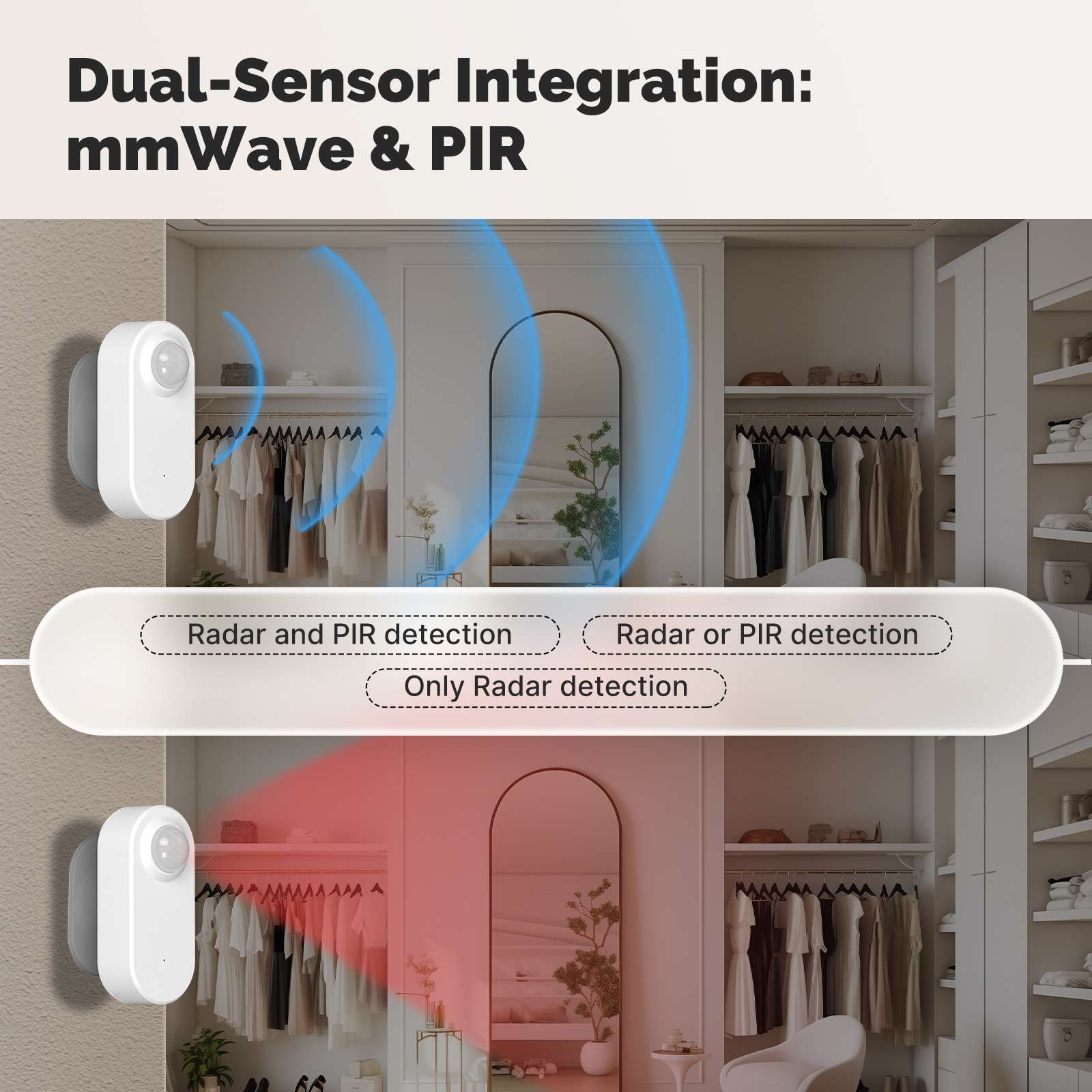

✨ The MOES ZSS-HP05 sensor combines 24GHz mmWave radar with PIR technology for dual human presence detection. It distinguishes between motion and immobility, ensuring reliable detection even when you are still. Requires Zigbee gateway.
✔ 24GHz mmWave radar + PIR for dual presence detection ✔ Motion detection up to 10 m and micro-motion up to 6 m ✔ Detection angle ≥100° for wide coverage ✔ Distinguishes between a person in motion and a person standing still (immobility) ✔ Integrated light sensor (0-3000 lux) ✔ Real-time alerts via Tuya Tuya Smart / Smart Life app ✔ Detection history for consultation ✔ Power supply: 2x LR03 AAA batteries (autonomy >6 months) ✔ Zigbee 3.0, requires Zigbee Tuya gateway ✔ Wireless installation with adhesive tape
Usage Example
Place the sensor in the office or living room. Unlike traditional PIR sensors that only detect motion, this sensor maintains detection even when you are sitting at work. The lights stay on as long as there is presence, and turn off automatically when you leave the room. Ideal for offices, bathrooms, and hallways.
Product specifications
Brand: MOES
Model: ZSS-HP05-A
Wireless connection: Zigbee 3.0
Radar: mmWave 24 GHz
Motion detection: Up to 10 m
Immobility detection (micro-motion): Up to 6 m
Detection angle: ≥100°
Light sensor: 0-3000 lux
Voltage: DC 3.3V
Power supply: 2x LR03 AAA batteries
Autonomy: >6 months
Average current: <65 uA
Weight: 39 g
App: Tuya Tuya Smart / Smart Life (iOS and Android)
Requires: Tuya Zigbee Tuya gateway (sold separately)
What's in the box
1x mmWave MOES ZSS-HP05 presence sensor
1x User manual
1x Adhesive tape
Barcode: 6974246472775
Reference: MOZSS-HP05-A-MS
