Description
10-port PoE Switch for CCTV and small networks
8 PoE+ ports, 2 uplinks and fanless metal casing

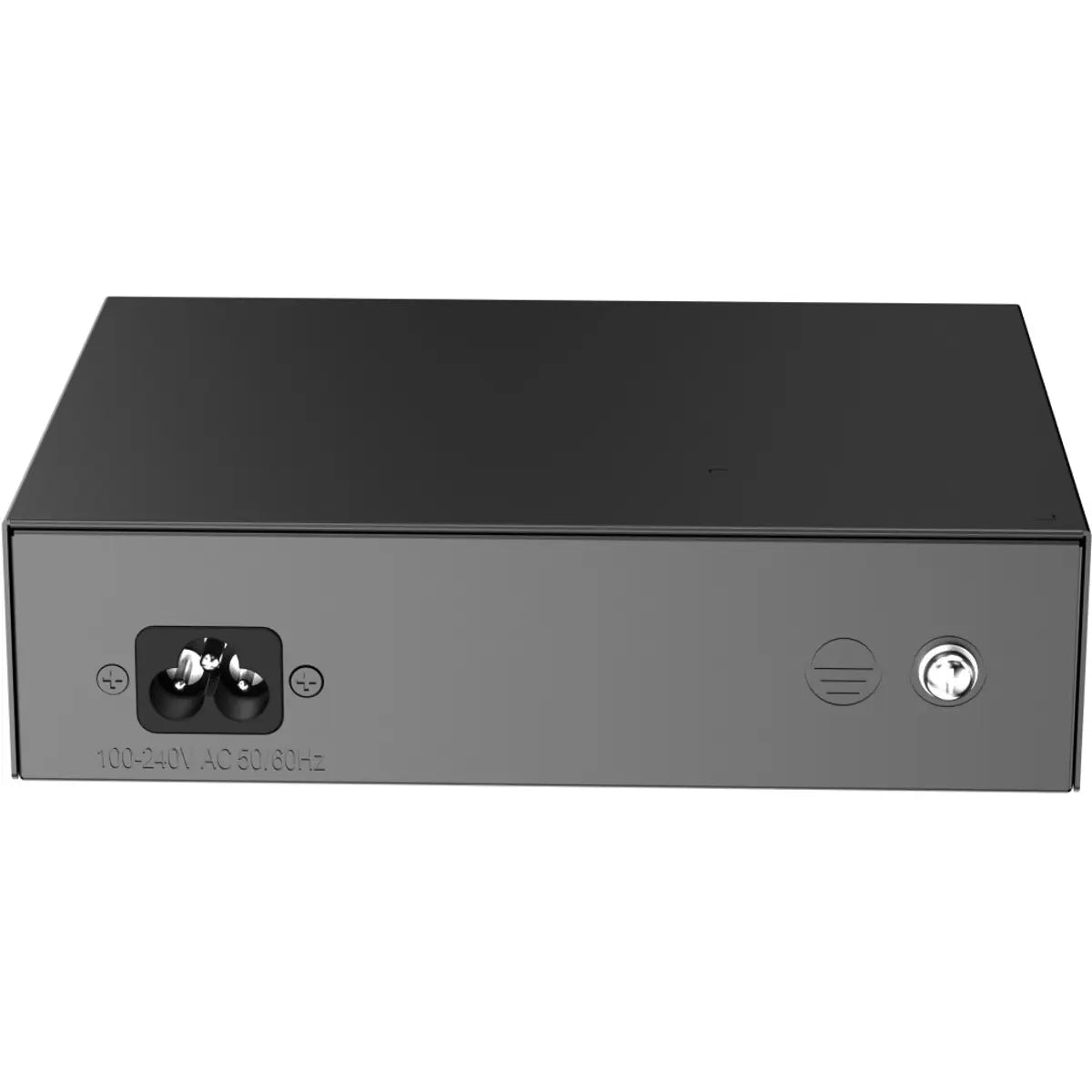

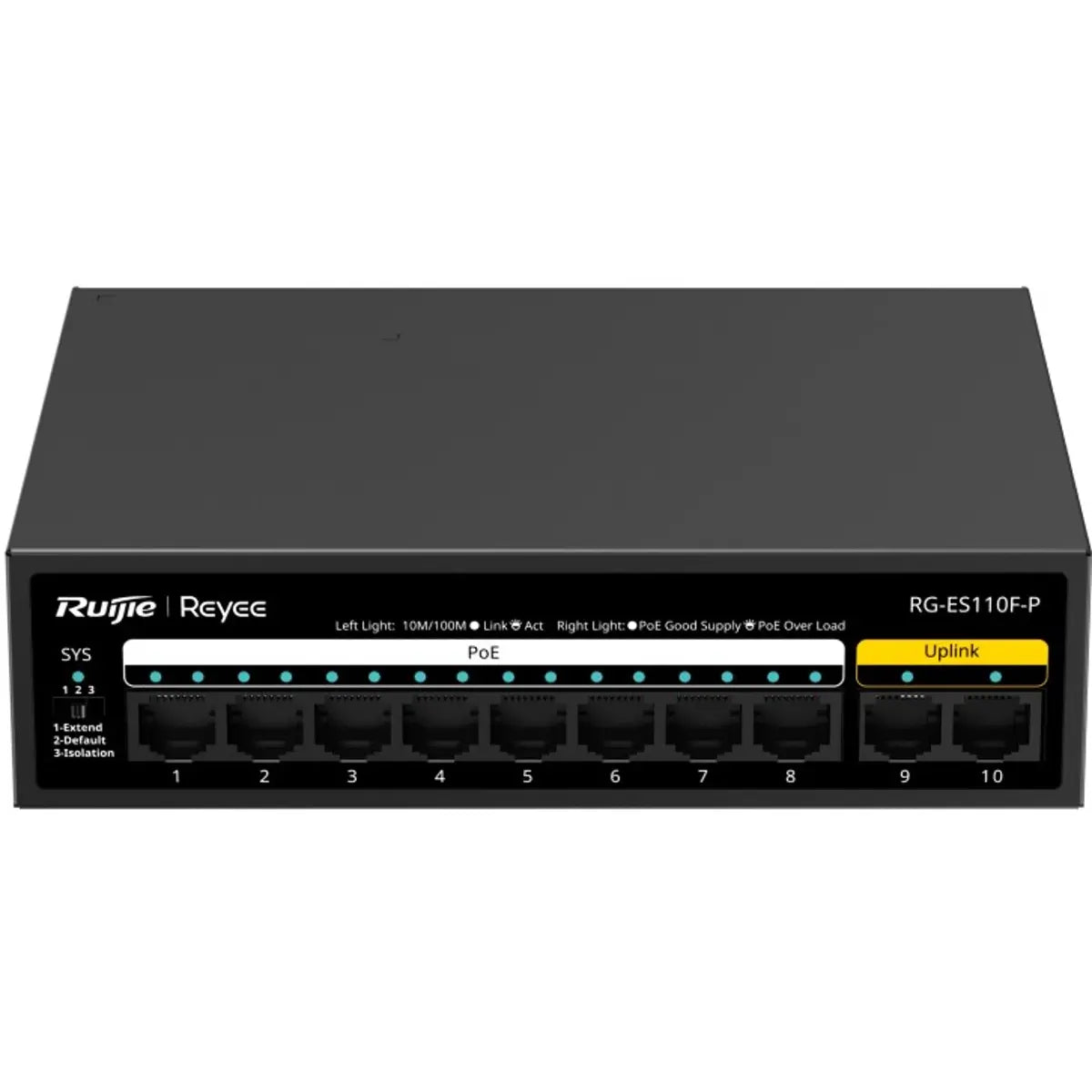

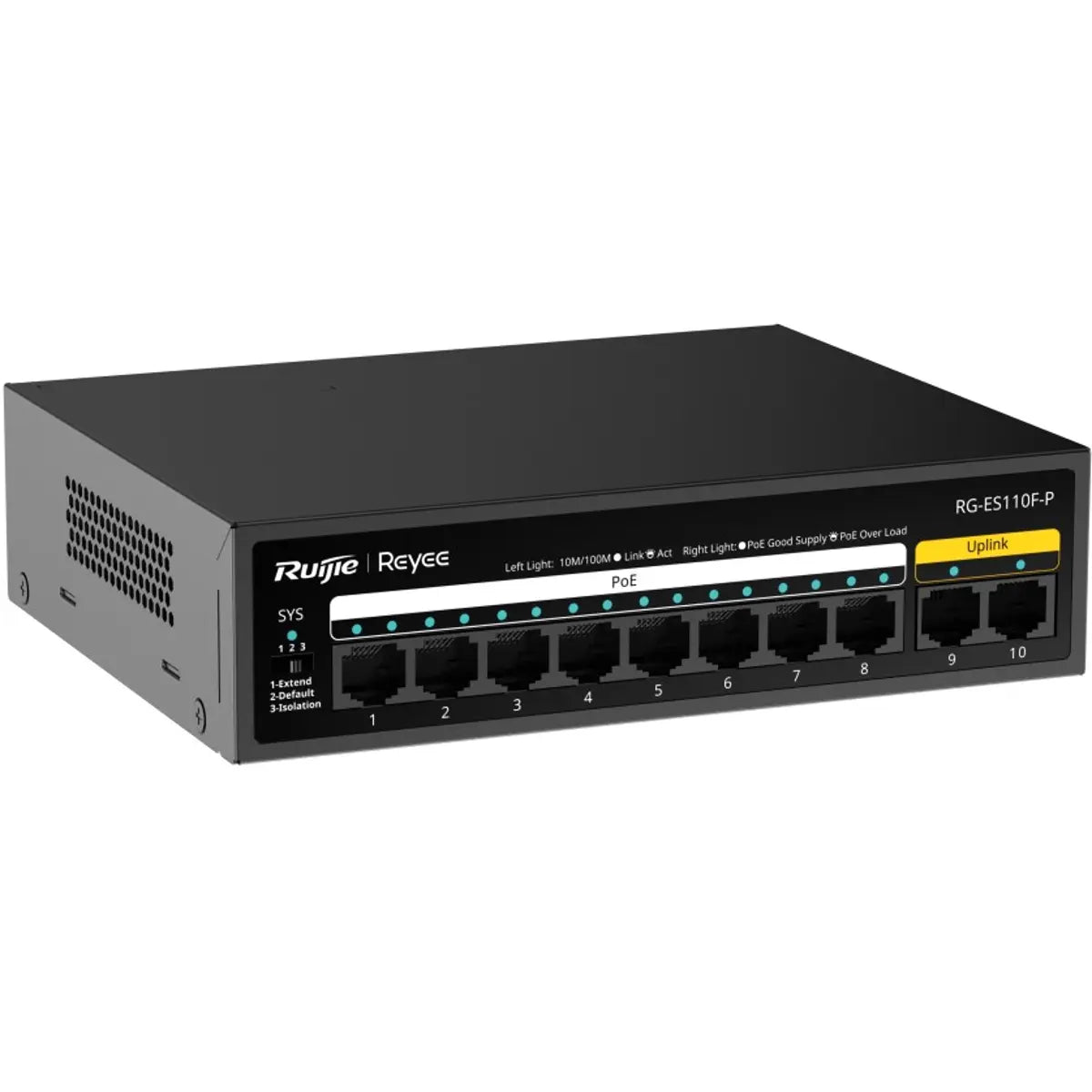

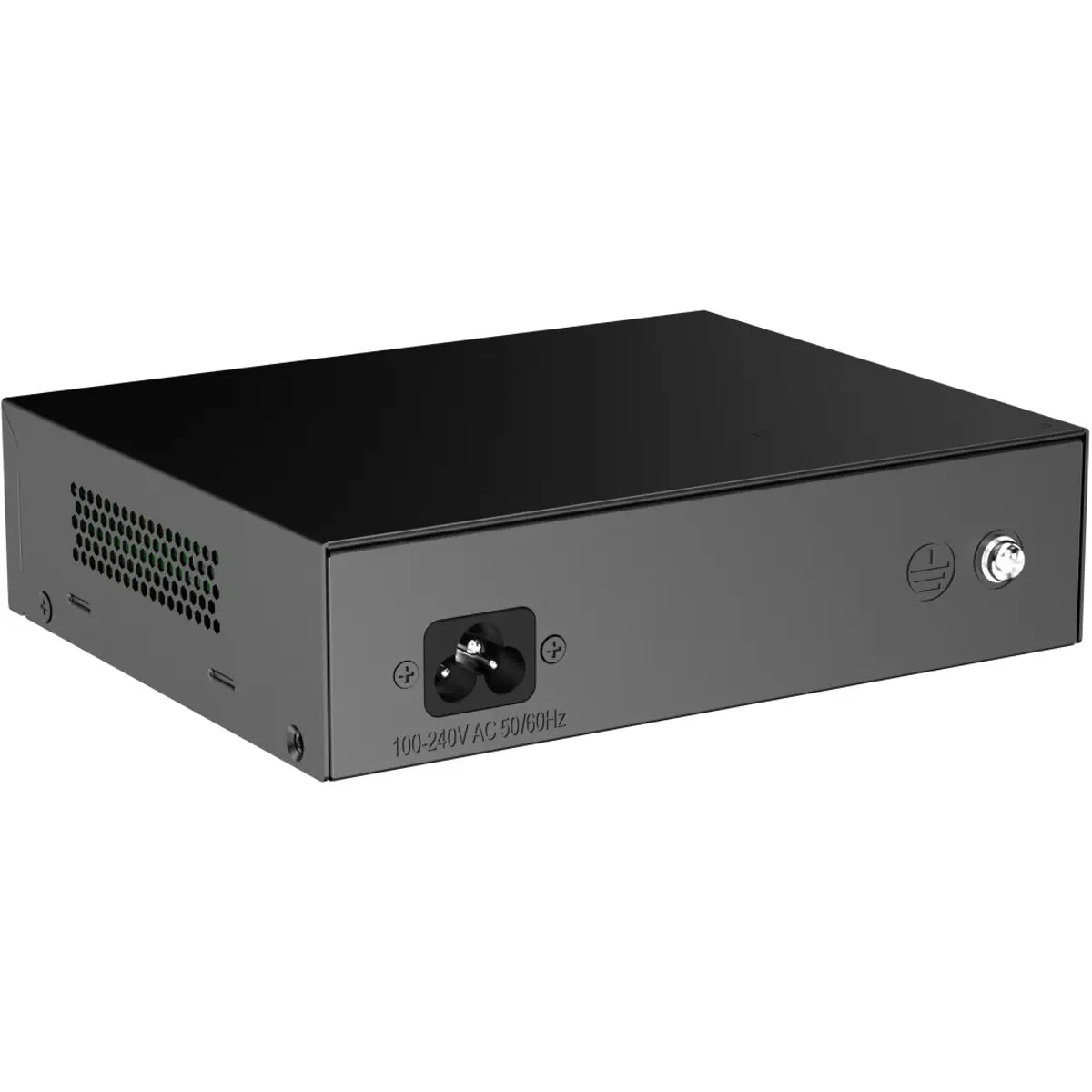

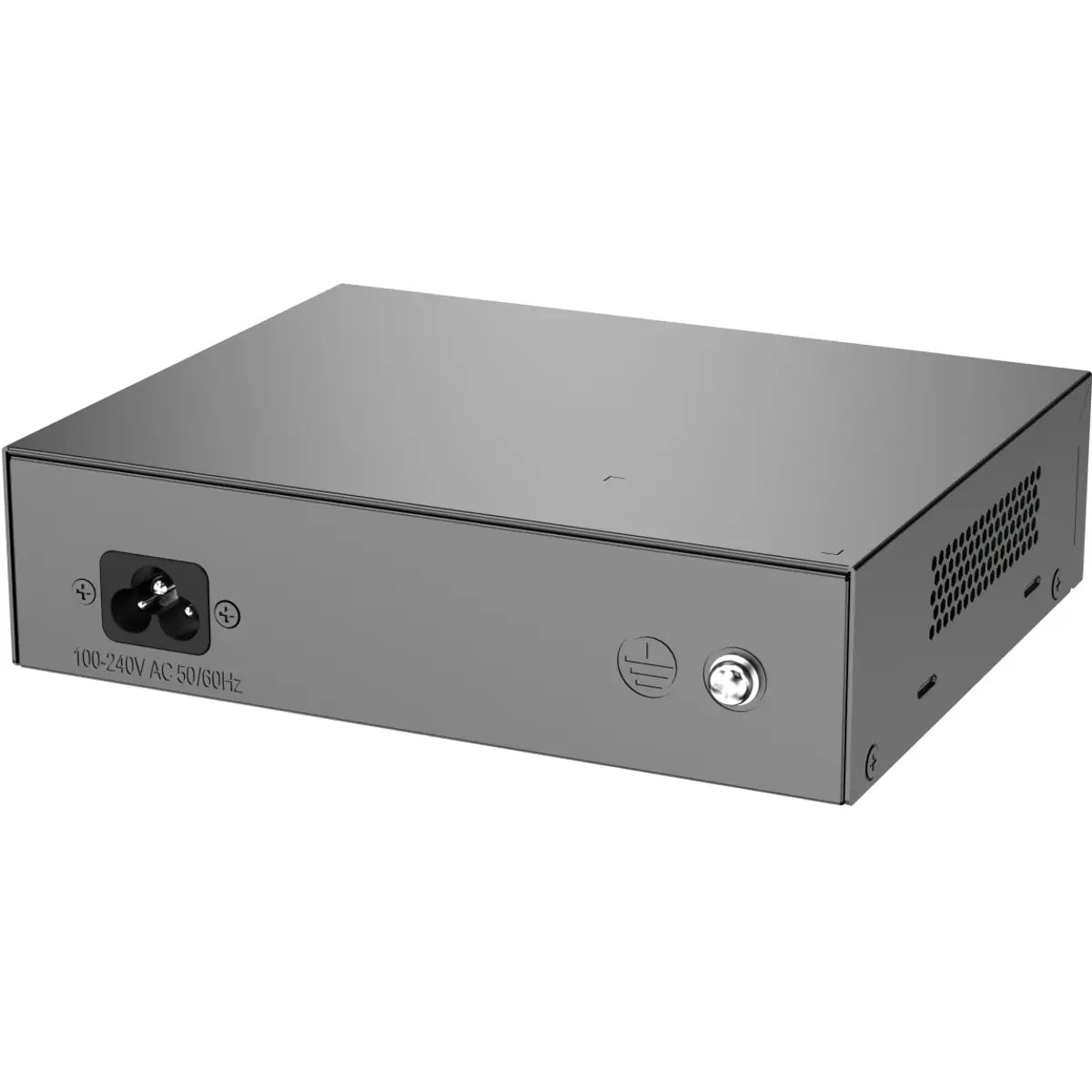

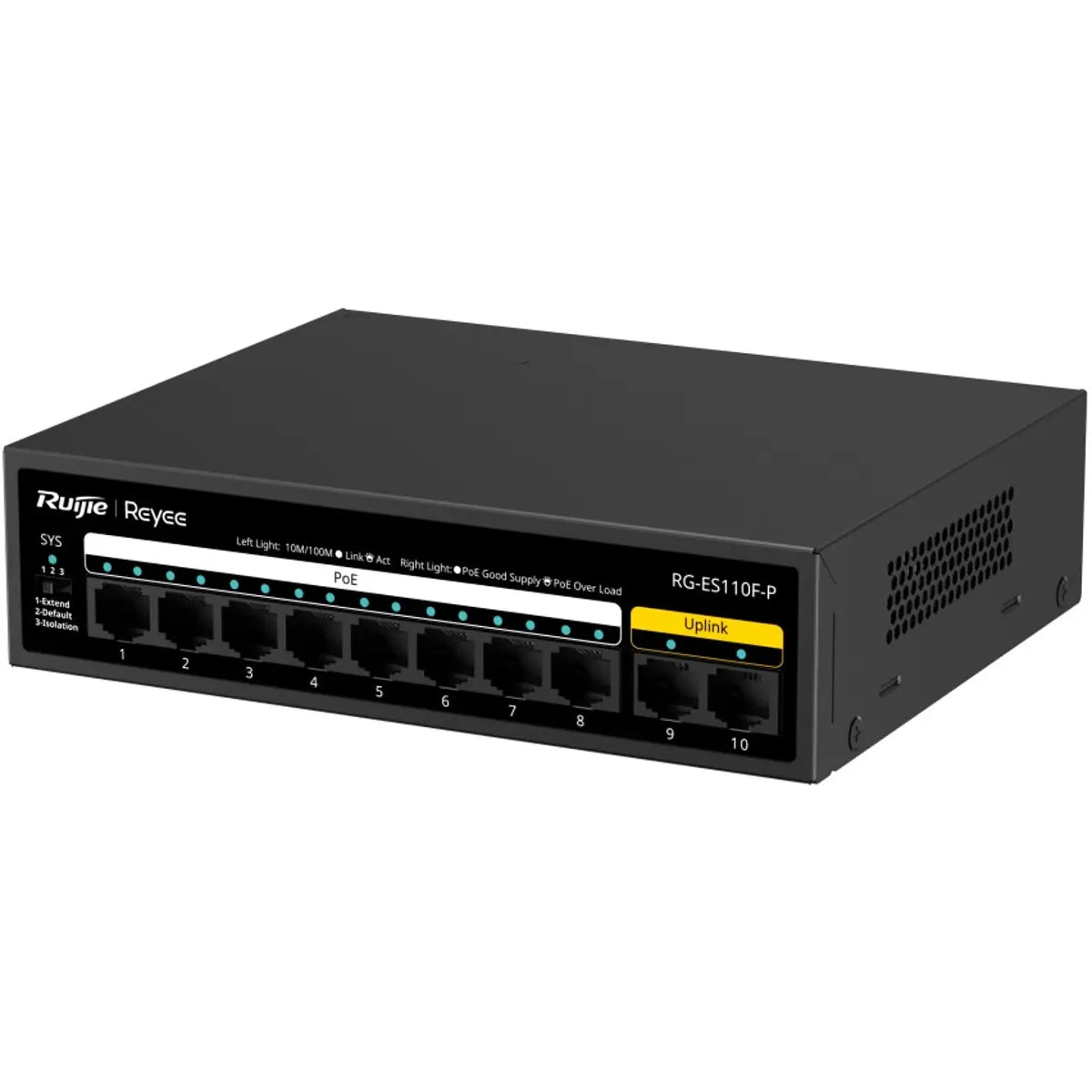

The Reyee RG-ES110F-P is a 10-port unmanaged PoE+ switch, suitable for CCTV networks, small professional installations and points where it is necessary to power IP cameras or other PoE equipment through the network cable.
With 8 PoE+ ports, 2 10/100 Mbps uplink ports and a total PoE budget of 110 W, it allows for a simple and organized installation. The metal casing, fanless operation and surge protection up to 4 kV make this model suitable for stable and discreet installations.
Main features
10 10/100 Mbps ports: 8 PoE+ downlink ports and 2 uplink ports.
PoE+ up to 110 W: maximum PoE budget of 110 W and up to 30 W per port.
CCTV Network: suitable for video surveillance installations and small professional networks.
Smart PoE Management: includes PoE Watchdog Interval for greater stability of connected equipment.
Metal casing: robust construction and fanless design for silent operation.
Visible in Ruijie Cloud: allows monitoring within the Ruijie/Reyee ecosystem.
Usage example
Ideal for connecting and powering up to 8 PoE IP cameras in a small CCTV installation, keeping 2 uplink ports for connection to the router, NVR or main network.
Product specifications
Brand: Reyee
Model: RG-ES110F-P
Type: Unmanaged PoE+ switch
Ports: 8 10/100BASE-T PoE+ downlink ports + 2 10/100BASE-T uplink ports
PoE: PoE+ up to 30 W per port
Maximum PoE budget: 110 W
Switching capacity: 2.0 Gbps
Forwarding rate: 1.48 Mpps
MAC address table: 8000
Ventilation: fanless
Surge protection: 4 kV
Features: Auto/Full-/Half-Duplex, Negotiation, Auto MDI/MDIX and PoE Watchdog Interval
Dimensions: 166 x 132.6 x 43 mm
Weight: 1.22 kg with packaging
Warranty: 3 years
Application: Ruijie Cloud / Reyee
Includes
1 × Reyee RG-ES110F-P Switch
1 × Power cable
1 × User manual
Barcode and reference
Barcode: 6971693279063
Internal Reference: RERG-ES110F-P
