Monitor the consumption of any appliance, electrical circuit or office equipment (lighting, sockets, safety systems, heaters, conditioned air, etc.) individually. The consumption of your home or electricity generated from solar panels with the only energy meter operated by Wi-Fi with accountant control functionality.
Product characteristics:

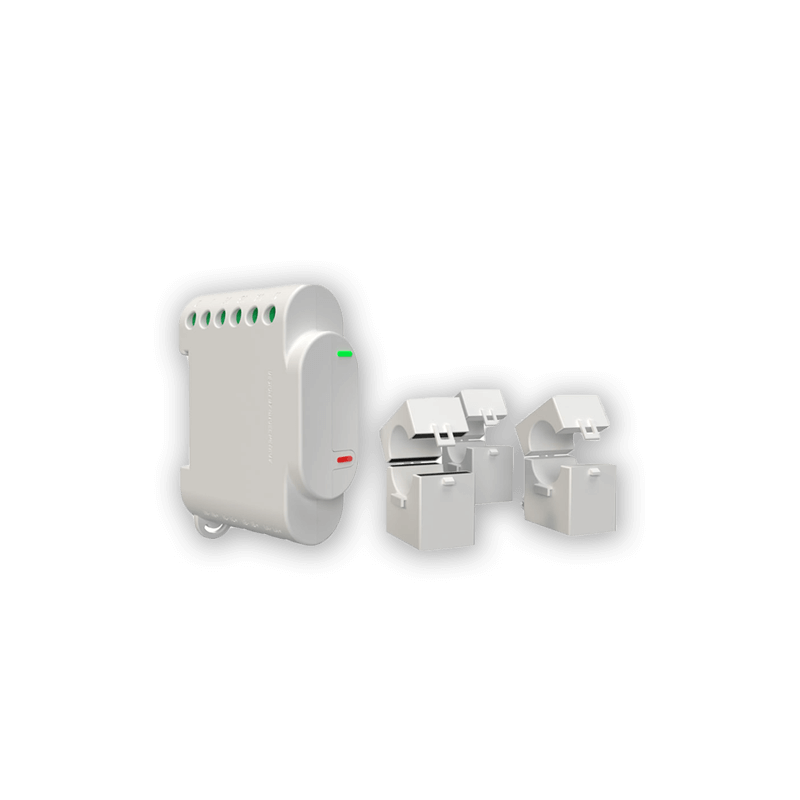

Module / relay / relay / Relay / Switch Shelly 3 at:
- Three independent measurement channels of up to 120a each
- A contactor control (or load of up to 10A)
- 365 days of internal memory if Wi-Fi is not available
- Voltage measurement and configurable alarm report
- 3x Current Transformers 120a included
- AC power supply: 110-240 V ± 10%, 50/60 Hz
- DC power supply: No
- Contactor Control: Yes - Maximum 10a
- Roll shutter mode: no
- Device temperature protection: No
- Overload Protection: No
- Power measurement: yes
- Operational temperature: 0 ° C to + 40 ° C
- Device energy consumption: <1 W
- Intelligent turn / off: yes
- Local and remote control: yes
- Sun Sunrise: Yes
- Weekly time: yes
- Option listed by UL: No
- Wireless Protocol / WiFi: 802.11 B / g / N
- Radio frequency: 2400 - 2484 MHz
- Radio signal power: 1mw
- Track: up to 50 m outdoors and up to 30 m indoors (depending on building materials)
- Size: 73 mm x 57 mm x 22 mm
