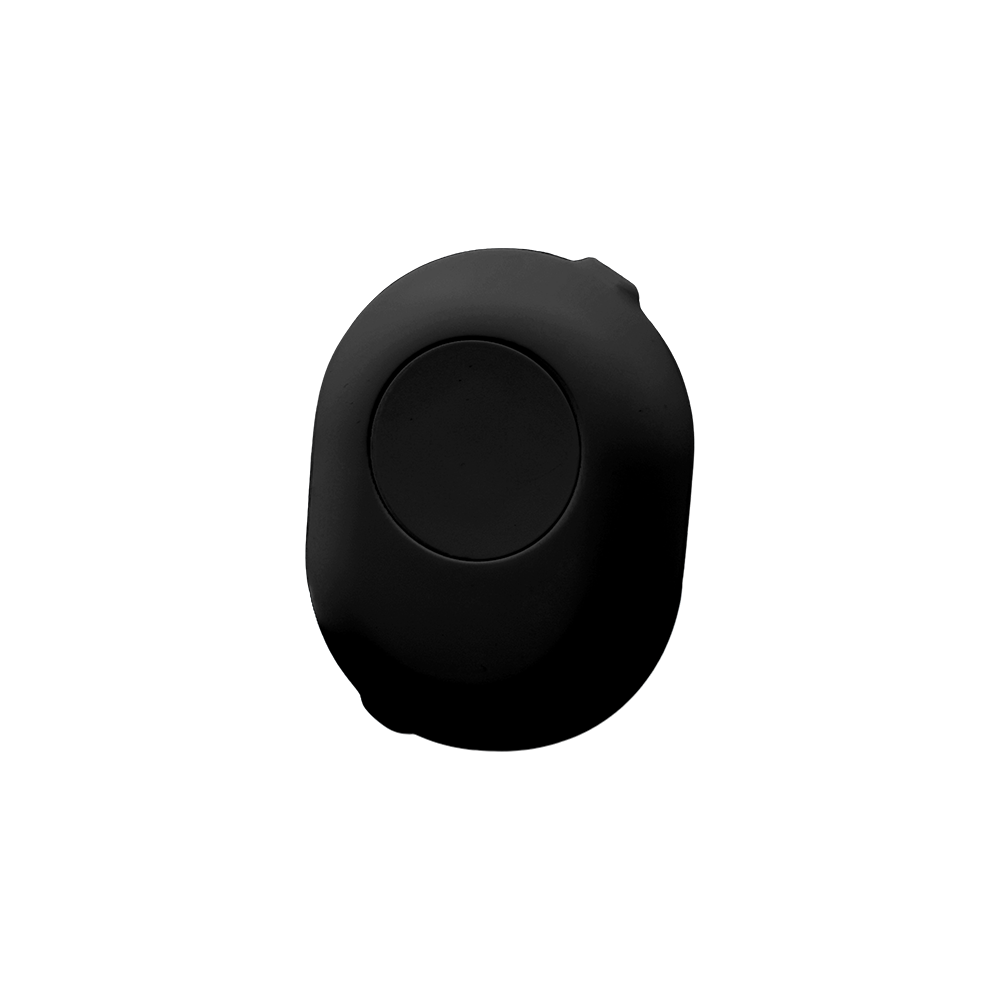

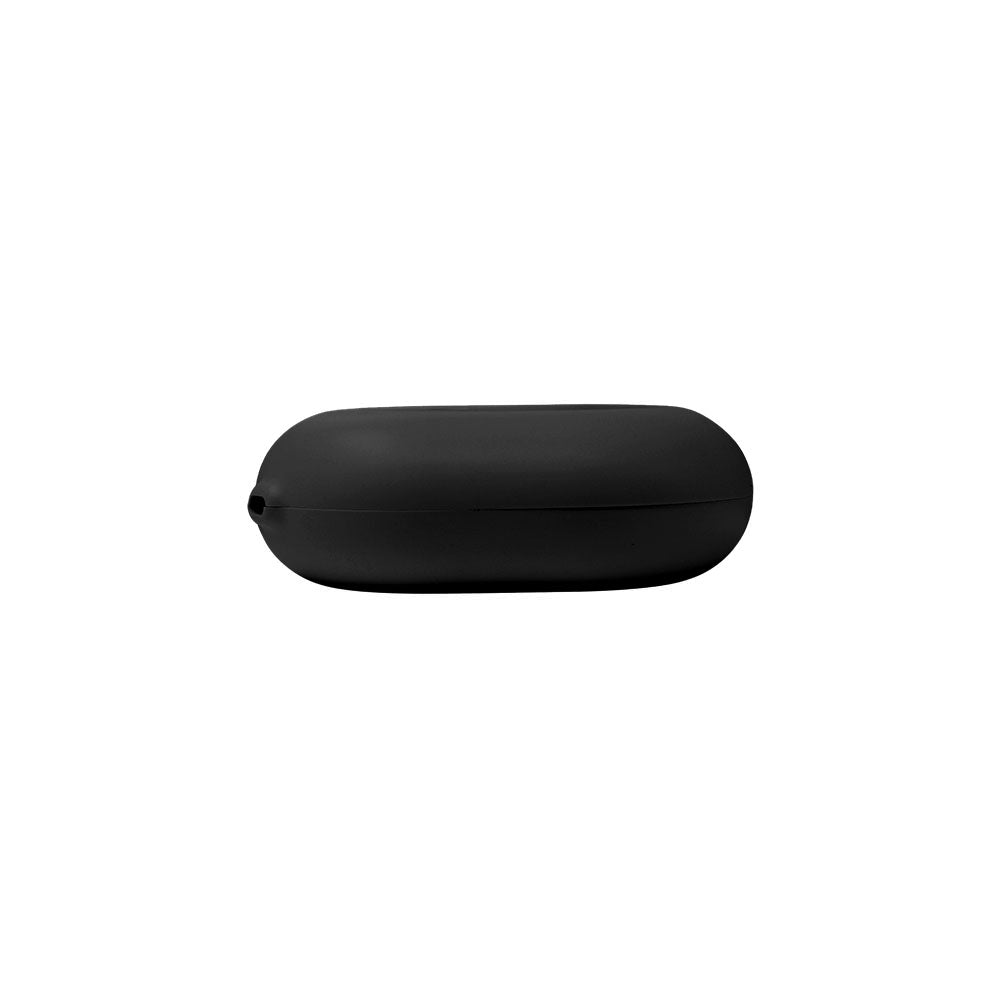

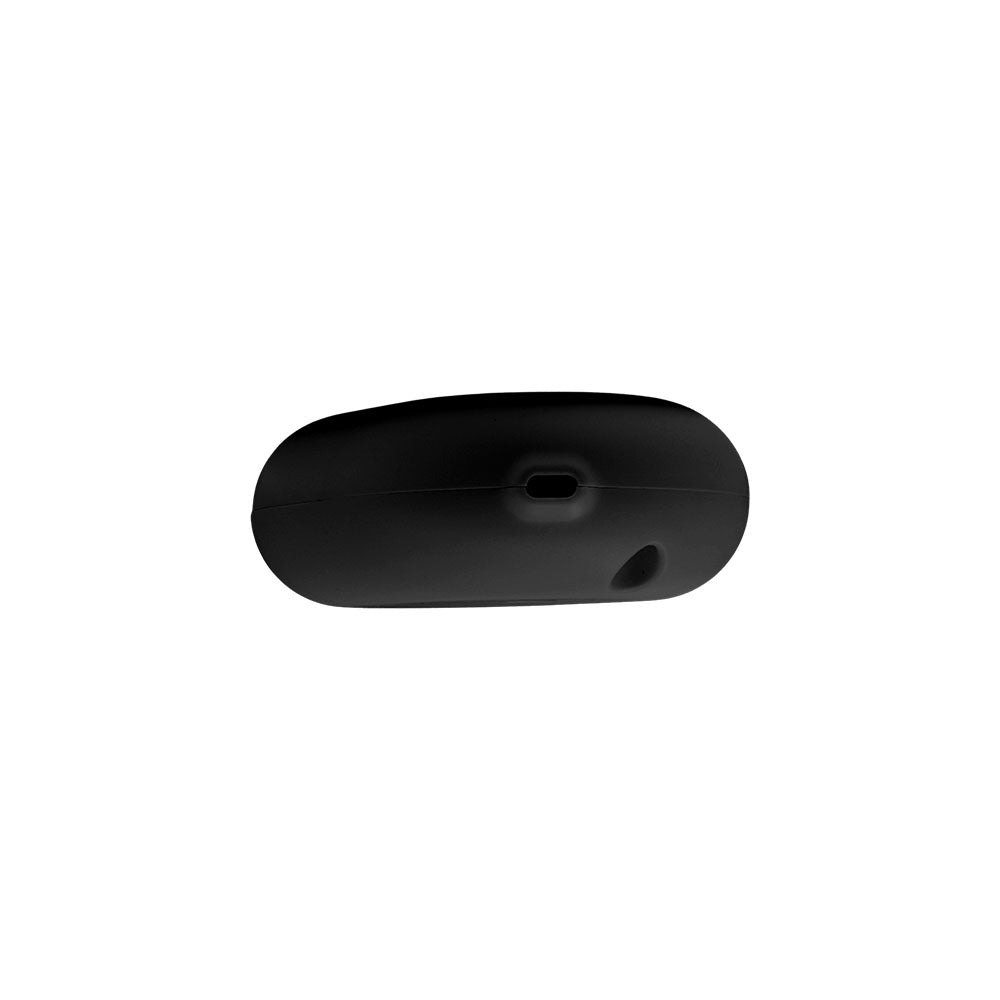

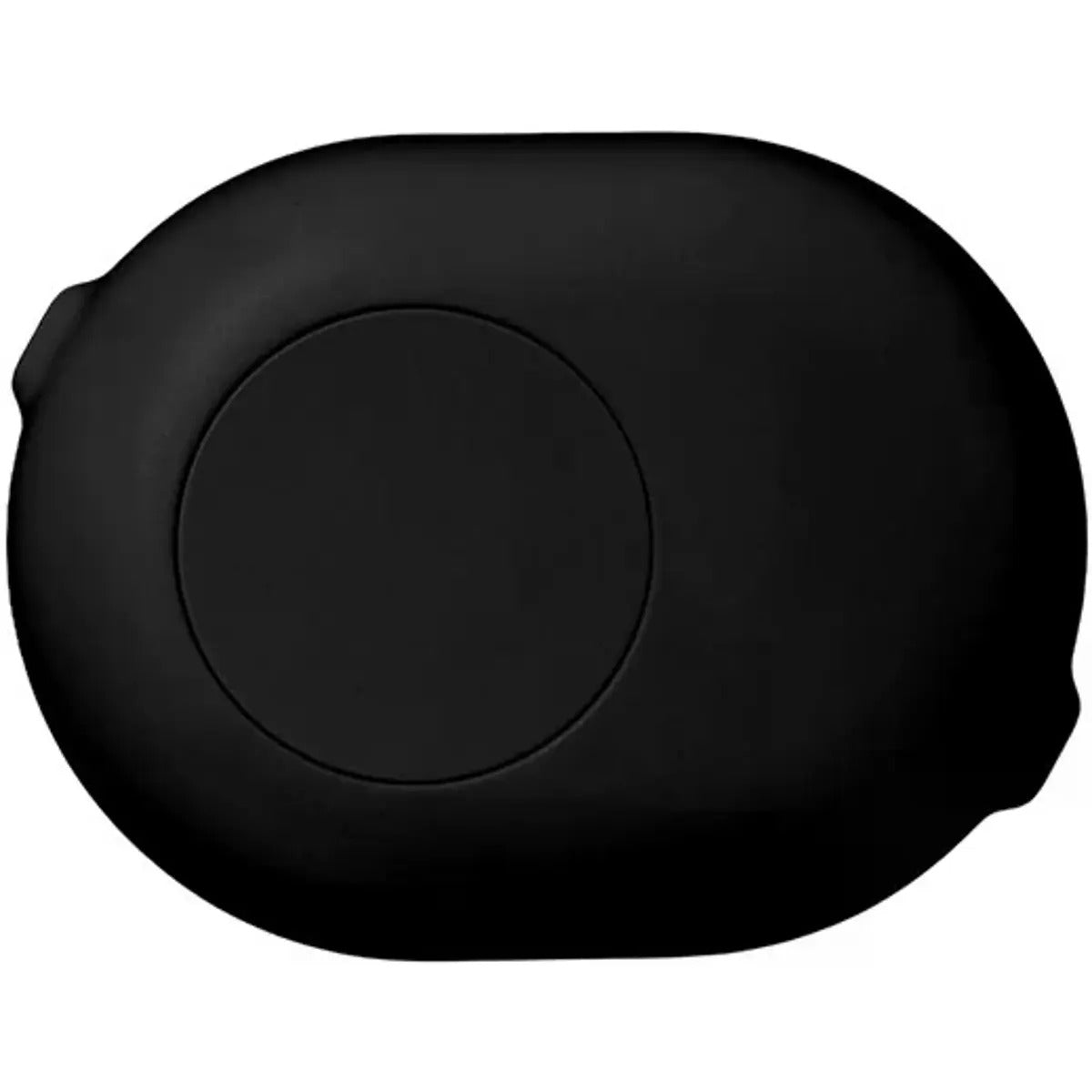

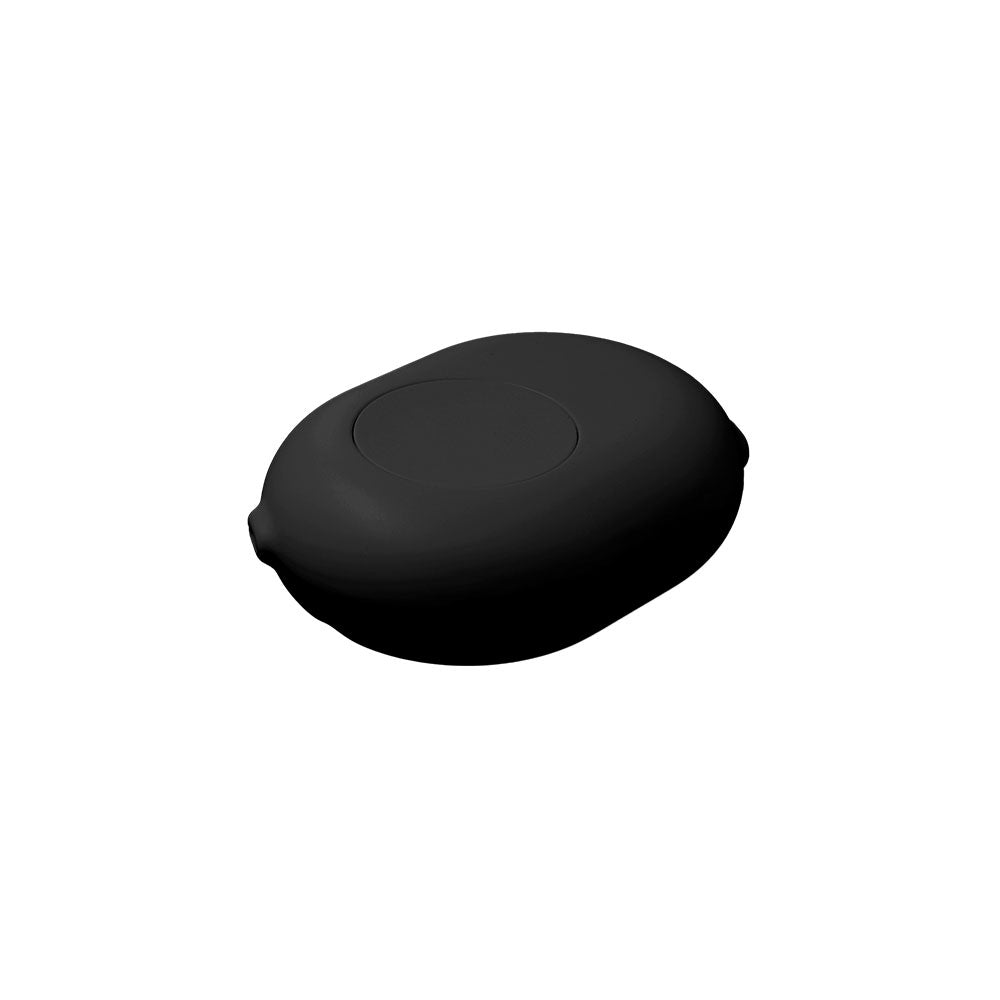

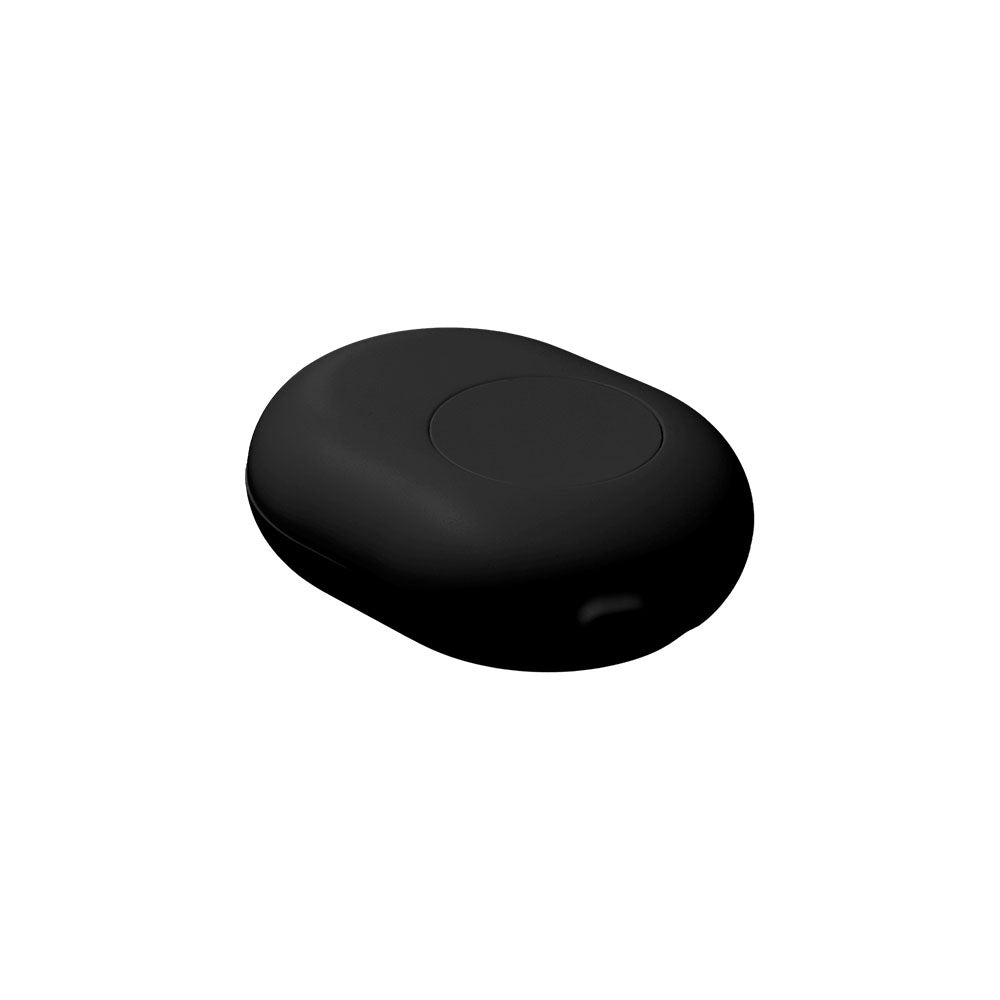

Shelly Button Add-On Black - Surface-mounted Box with Button

Surface-Mounted Box for Relays and Dimmers with Integrated Button

Transforms any Shelly relay or dimmer into a complete surface-mounted switch, without the need for a flush-mounted box. Ideal for quick upgrades, temporary installations, or spaces where it is not possible to open wall grooves.

✨ Installation simplicity: Pre-installed color-coded wiring - just connect the Shelly, close the box, and fix it to the wall.
✔ Total compatibility: Works with Shelly Gen1, Plus (Gen2), Gen3, Gen4, and Mini relays and dimmers
✔ Integrated button: Direct local control without needing an external switch
✔ Compact design: Only 63x84x28 mm - discreet in any room
✔ No construction work: No flush-mounted box or wall drilling required

Usage Example

Perfect for adding smart control to lamps, fans, or small appliances. Simply install a Shelly 1PM Mini Gen3 inside the box, connect the device plug, and you can already control everything via the Shelly Smart Control app or by voice with Alexa and Google Home.

Product Specifications

Brand: Shelly
Model: S-BuAdd-B (Button Add-On Black)
Color: Black
Dimensions: 63 x 84 x 28 mm
Weight: 46 g
Material: Plastic
Power Supply: 220-240 V~ 50 Hz
Maximum switching voltage: 240 V~
Maximum switching current: 3 A
Connection: Push-in terminals, 5 pre-installed cables
Conductor cross-section: 0.2 to 1.5 mm²
Mounting: Surface-mounted (no flush-mounted box)
Operating temperature: -20°C to 40°C
Compatibility: Shelly Gen1, Plus (Gen2), Gen3, Gen4, Mini
App: Shelly Smart Control (iOS and Android)

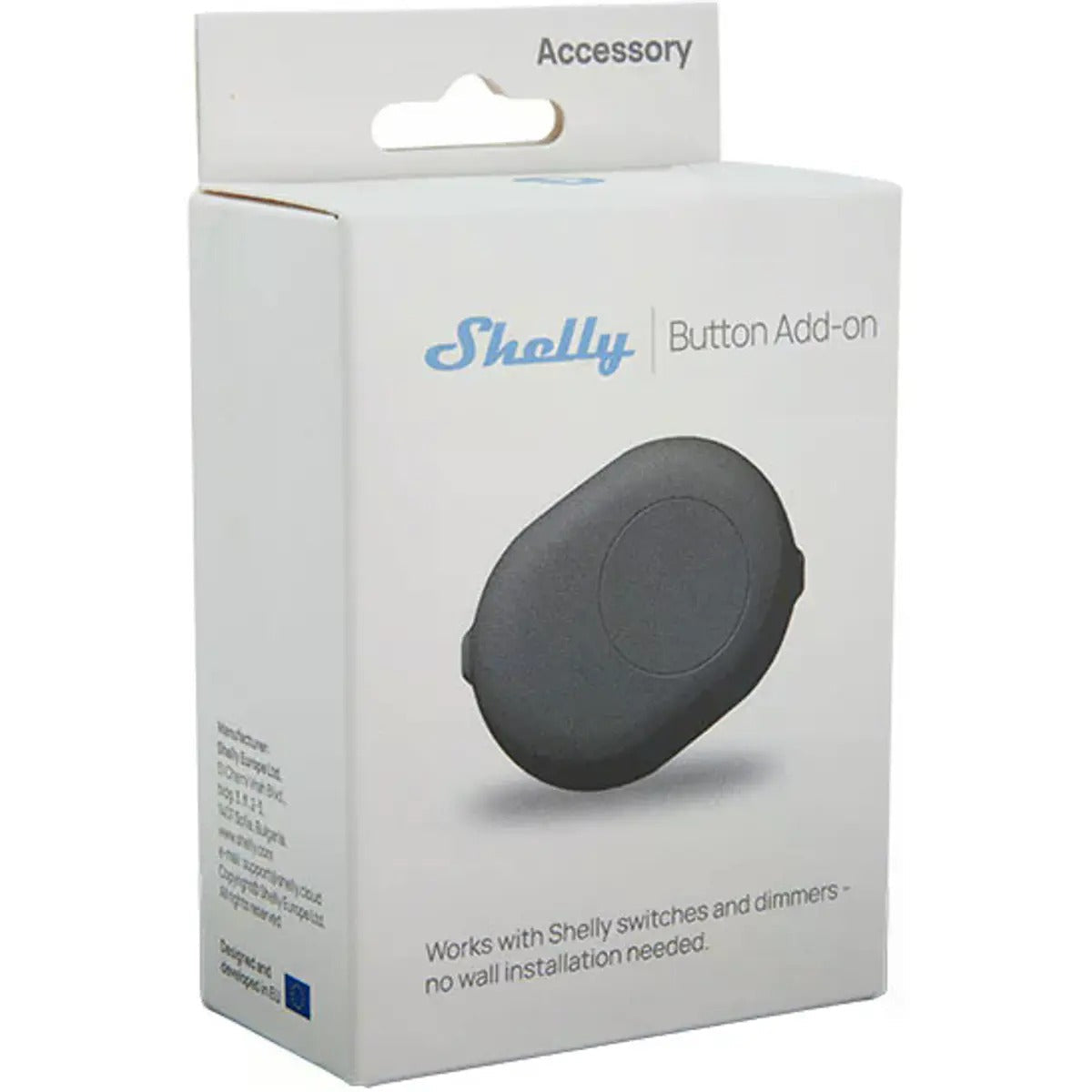

What's in the box

1x Shelly Button Add-On surface-mounted box (black color)
1x Pre-installed color-coded wiring
1x Instruction manual

Compatibility

Compatible with the following Shelly devices (sold separately):

- Shelly 1 / 1PM (Gen1)
- Shelly 2.5 (switch mode, Gen1)
- Shelly Dimmer 2 (Gen1)
- Shelly Plus 1 / 1PM (Gen2)
- Shelly Plus 2PM (switch mode, Gen2)
- Shelly Plus 1 / 1PM Mini (Gen2)
- Shelly 1 / 1PM Gen3
- Shelly 2PM Gen3 (switch mode)
- Shelly 1 / 1PM Mini Gen3
- Shelly Dimmer Gen3 (with neutral)
- Shelly 1 / 1PM Gen4
- Shelly 1 / 1PM Mini Gen4 Barcode: 3800238072193
Reference: SHBTNADDBK

FAQ

Does the Shelly Button Add-On work alone?
No. The Button Add-On is a surface-mounted box that needs a Shelly relay or dimmer to function. The Shelly device is sold separately. Does it need a flush-mounted box?
No. That is exactly the advantage - it mounts directly on the wall, without drilling or opening grooves. Which Shelly should I use with this box?
It depends on the application. To control a simple light, a Shelly 1PM Mini Gen3 is the most compact choice. For a lamp with dimming, use a Shelly Dimmer Gen3. Can I use it outdoors?
It is not recommended. The Button Add-On was designed for indoor use. The operating temperature is -20°C to 40°C, but it does not have IP protection against water or dust.
