Shelly Dimmer Gen4 - 200W WiFi Zigbee Matter Dimmer Module

Smart Dimming Controller with WiFi, Zigbee, Bluetooth and Matter

Smart Lighting for Any Environment, with or without neutral

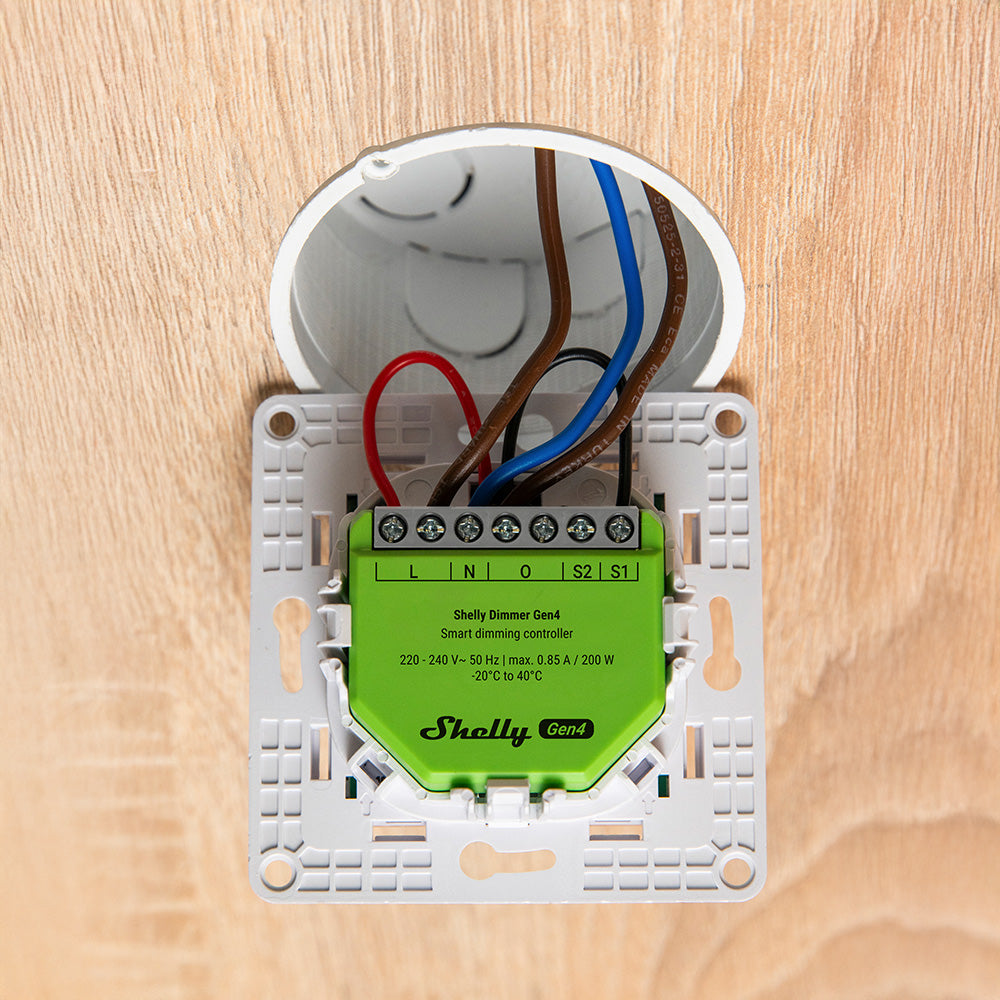

The Shelly Dimmer Gen4 is a smart dimming controller that transforms any existing lighting installation into a modern and connected experience. Compatible with dimmable LED, incandescent and halogen light bulbs, this compact module is installed behind the switch and offers full control over light intensity, schedules and automations.

Description

Developed to maximize flexibility in smart installations, the Shelly Dimmer Gen4 supports multi-protocol connectivity with WiFi 6 (802.11 b/g/n/ax), Bluetooth 5.0, Zigbee 3.0 and Matter. This means you can integrate it into your preferred network, either directly via WiFi without the need for a hub, or through a Zigbee coordinator or Matter controller. The dimming is precise and ultra-smooth, with trailing edge technology that eliminates brightness jumps and flickering. It is possible to set minimum and maximum brightness values, adjust the transition speed (fade time) when turning on/off and configure night mode for more welcoming environments. The Shelly Dimmer Gen4 works with or without neutral, adapting to old and new installations without the need for construction work. For loads below 20 W without neutral, the use of the Shelly Dimmer Bypass (sold separately) is recommended. The Shelly Smart Control application, free for iOS and Android, offers full control without the need for external hubs. It supports schedules (up to 20), webhooks (up to 20 with 5 URLs each), local scripts, MQTT and KNXnet/IP communication for professional projects.

Usage Examples

1. Living Room Lighting

Dim the light intensity to create the perfect atmosphere at any time of day. Schedule progressive dimming at the end of the day and a gradual increase at dawn.

2. Bedroom with Night Mode

Configure night mode so that the lights turn on automatically with minimum intensity during the night, avoiding glare. Ideal for baby and children's rooms.

3. Automation with Scripting

Use local scripts to create advanced automations, such as courtesy light that gradually turns off when leaving a room, or synchronization with motion sensors.

4. Multi-Ecosystem Compatibility

Integrate with Home Assistant, Google Home, Amazon Alexa, Apple HomeKit (via Matter) and Samsung SmartThings. It also supports KNXnet/IP for professional automation projects.

Specifications

Brand: Shelly
Model: Dimmer Gen4
Power Supply: 220-240 V~ 50 Hz
Consumption: Less than 1.5 W
Neutral: no neutral required (bypass recommended for loads below 20 W without neutral)
Dimming Type: Trailing edge
Maximum Output Power: 200 W
Maximum Current: 0.85 A
Supported Loads: Dimmable LED up to 150 W, incandescent up to 200 W, halogen up to 200 W, ferromagnetic transformers up to 200 VA, dimmable electronic transformers up to 200 W
External Protection: 16 A, B or C curve, 6 kA, energy limiting class 3
Connectivity: WiFi 802.11 b/g/n/ax, Bluetooth 5.0, Zigbee 802.15.4, Matter
CPU: ESP-Shelly-C68F + STM32 G051
Flash: 8 MB
Energy Measurement: Voltmeter (180-280 V AC), Ammeter (0-3 A AC), accuracy ±5% with neutral
Internal Temperature Sensor: Yes
Schedules: 20
Webhooks: 20 with 5 URLs per webhook
Scripting: Yes
MQTT: Yes
Dimensions: 38.5 x 43.5 x 17 mm
Weight: 24.3 g
Operating Temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Application: Shelly Smart Control (free for iOS and Android)
Compatibility: Home Assistant, Google Home, Amazon Alexa, Apple Home (via Matter), Samsung SmartThings, KNXnet/IP

What's in the Box

✔ 1x Shelly Dimmer Gen4
✔ 1x Quick Installation Manual
Barcode: 3800238072353
Internal Reference: SHDIMMERGEN4
