Description
Compact sensor for doors and windows with Zigbee and Bluetooth
The Shelly BLU Door/Window ZB is a wireless sensor for doors and windows that detects opening, closing, tilt and brightness. It is a compact option for security, energy saving and automations in a Smart Home.
With Zigbee 3.0 and Bluetooth 5 LE, it can be integrated into compatible platforms and used to trigger scenes when a door, window, balcony or gate is opened. The included CR2032 battery offers autonomy of up to 5 years, depending on usage and site conditions.
Main features
✔ Detection of opening and closing of doors or windows
✔ Tilt measurement for tilt-and-turn windows
✔ Integrated brightness sensor
✔ Zigbee 3.0 and Bluetooth 5 LE connectivity
✔ AES encrypted communication in CCM mode
✔ CR2032 battery included, autonomy up to 5 years
✔ Compact format for discreet installation
Usage example

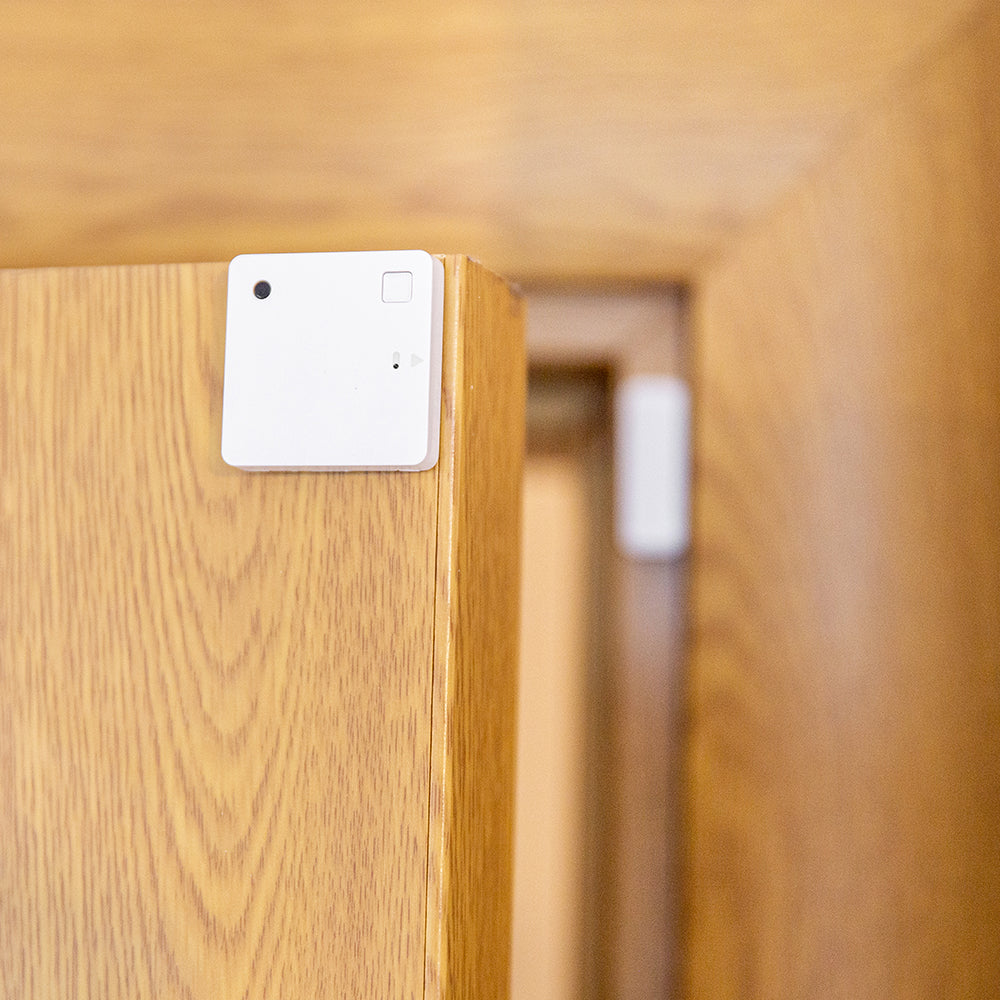

Install the sensor on a window to automatically turn off the climate control when the window is opened, or on a front door to receive a notification when there is unexpected opening.
Product specifications
Brand: Shelly
Model: BLU Door/Window ZB
Manufacturer reference: FG3800238072612
Type: Door and window sensor
Color: White
Power supply: 1x 3 V CR2032 battery included
Autonomy: Up to 5 years
Connectivity: Zigbee 3.0 and Bluetooth 5 LE
App: Shelly Smart Control and compatible platforms
Sensors: Reed switch, G-sensor and brightness sensor
Sensor dimensions: 35 x 35 x 7 mm ±0.5 mm
Magnet dimensions: 35 x 12 x 7 mm ±0.5 mm
Sensor weight: 10 g ±1 g with battery
Magnet weight: 8 g ±1 g
Operating temperature: -20 °C to 40 °C
Humidity: 30% to 70% RH
Use: Indoor
What’s in the box
1x Shelly BLU Door/Window ZB White
1x Magnet
1x CR2032 Battery
1x Installation accessories
1x User and safety guide
Barcode: SHDWZBBR
Reference: FG3800238072612
