Description

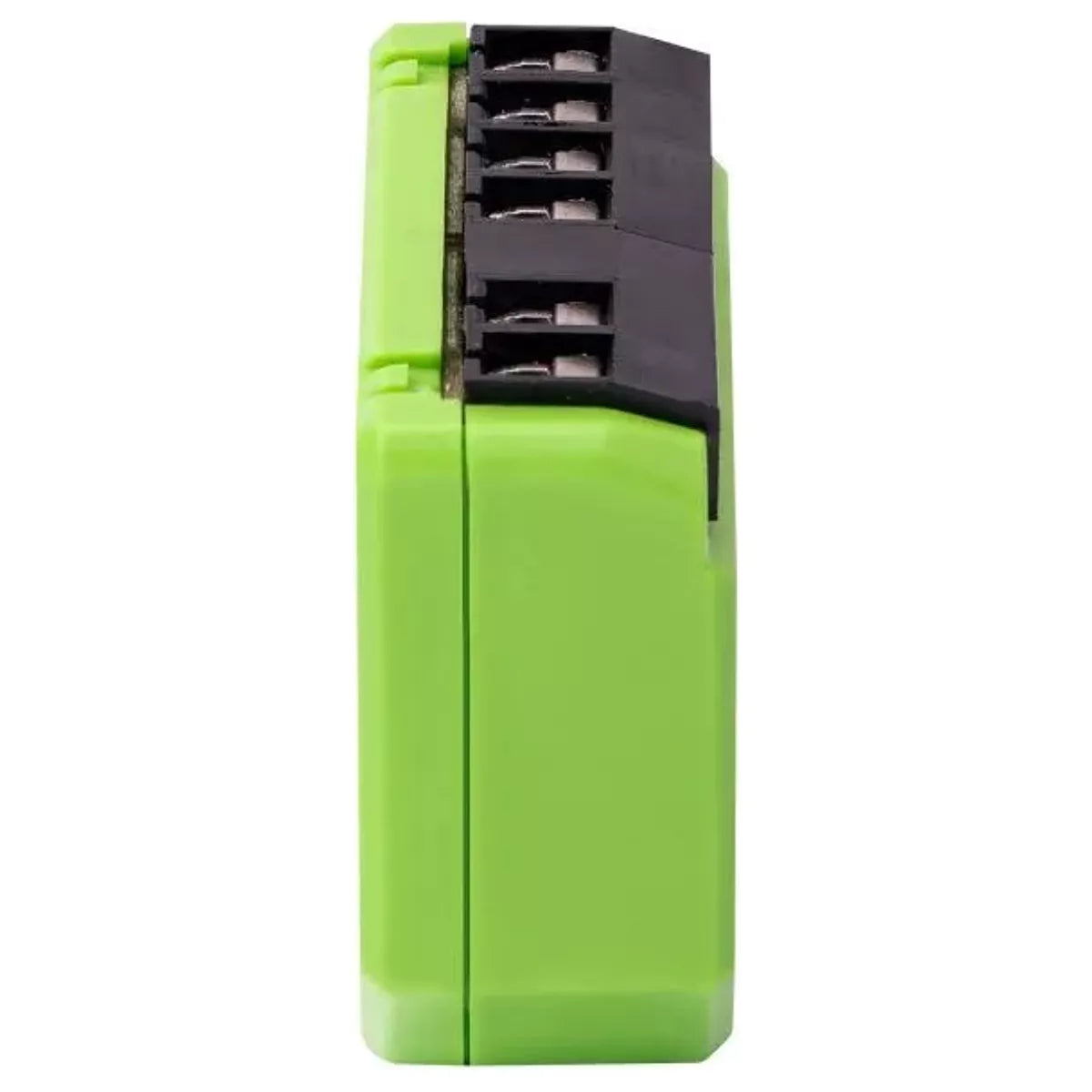

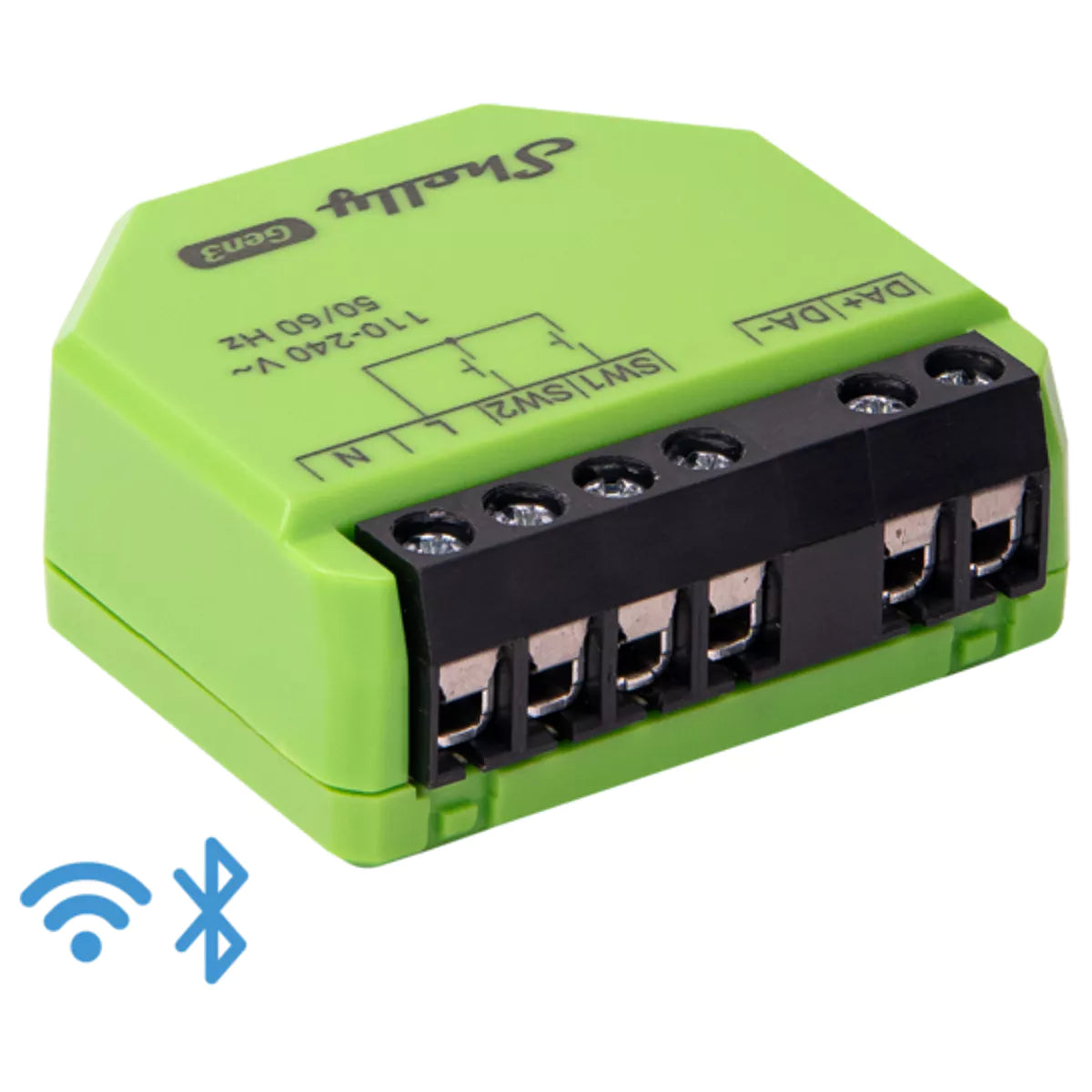

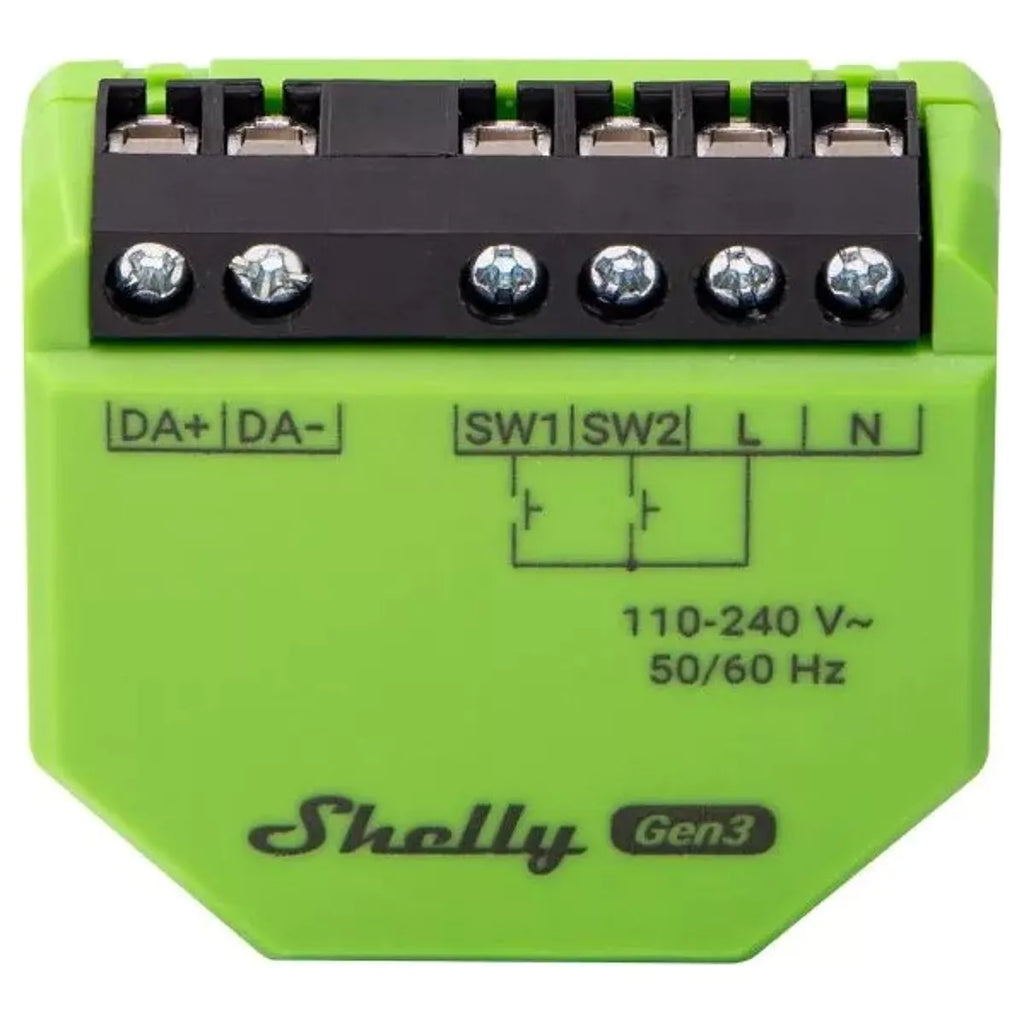

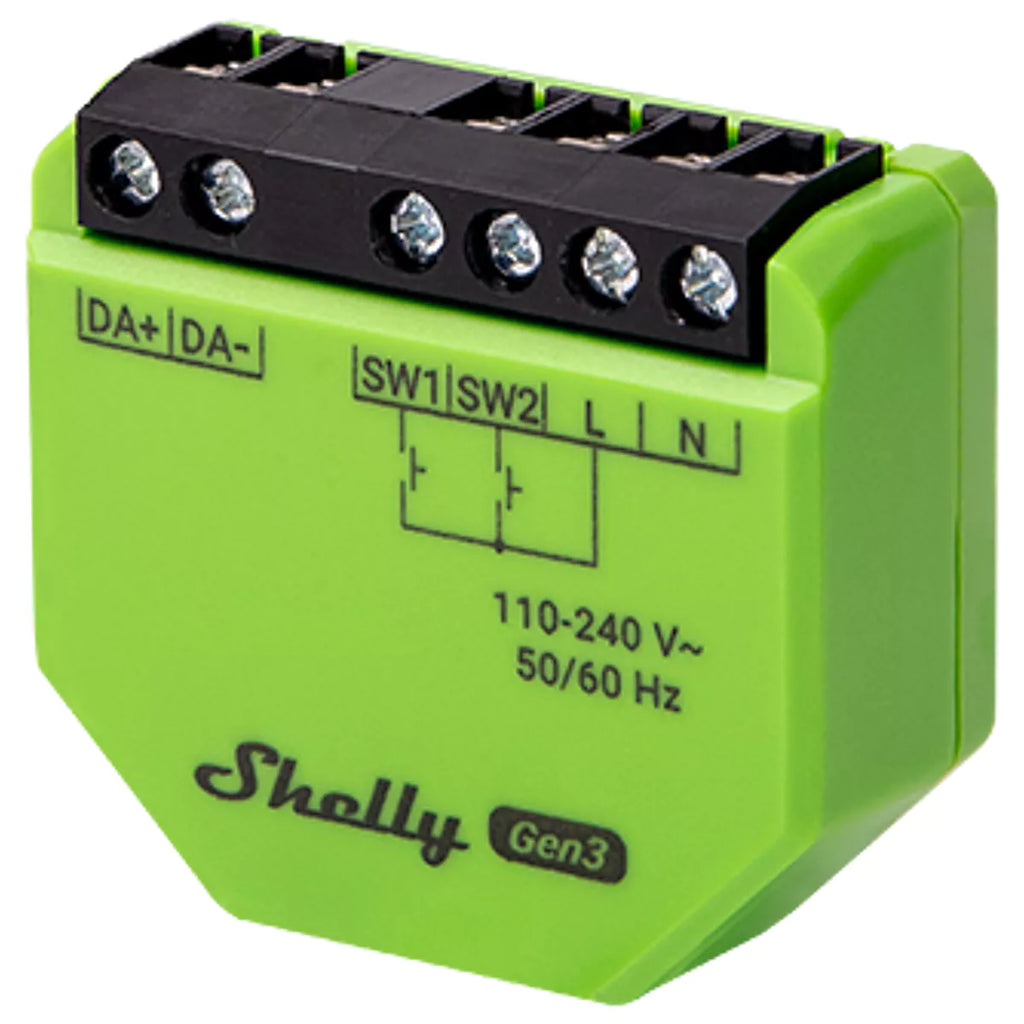

Shelly DALI Dimmer Gen3 - Intelligent Gateway for DALI Lighting
The Shelly DALI Dimmer Gen3 is an intelligent gateway that connects the Shelly ecosystem to lighting networks based on the DALI (Digital Addressable Lighting Interface) protocol. Ideal for conference rooms, commercial spaces, hospitals, or any installation that uses DALI lighting, this device allows for predictable and repeatable control of light intensity, integrating Shelly sensors and buttons for advanced and efficient automation.

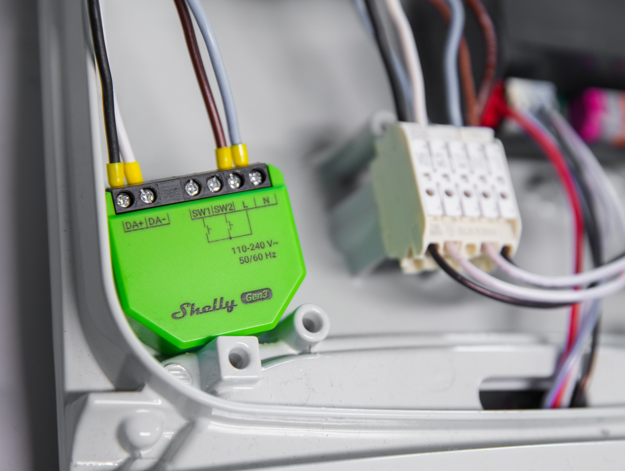

Perfect for both new constructions and retrofits, the Shelly DALI Dimmer Gen3 simplifies wiring and optimizes lighting management, offering advanced scheduling features, timers, and local automation.
Product Features:
Brand: Shelly
Model: DALI Dimmer Gen3
Communication Protocols: Wi-Fi, Bluetooth, MQTT, KNXnet/IP
Compatibility: Shelly Smart Control App, third-party systems
Type of Controller: Single-master DALI (broadcast)
Power Supply: 110–240 V~ 50/60 Hz
Self-consumption: < 2 W
Supported DALI Load: up to 5 DT6 luminaires with built-in power supply
Main Functions: intensity adjustment, night mode, timers, weekly scheduling, scripting, webhooks, BLE gateway, Wi-Fi range extender
Interface: Integrated web for monitoring and configuration
Material: Green plastic
Weight: 18 g
Dimensions: 42 × 37 × 17 mm
Additional Notes:
- The Shelly DALI Dimmer Gen3 operates only as a single master and cannot share the DALI bus with other controllers.
- Supports broadcast control, applying commands to all connected DALI luminaires, without individual or group control.
- Recommended for integration with Shelly sensors or wall buttons for advanced automation.
- Remote control functionality is available via Wi-Fi and the Shelly Smart Control App.
Includes:
1 × Shelly DALI Dimmer Gen3
1 × Installation and safety guide
Reference: SHGIDALIDGEN3
Barcode: 3800235261866
