Description

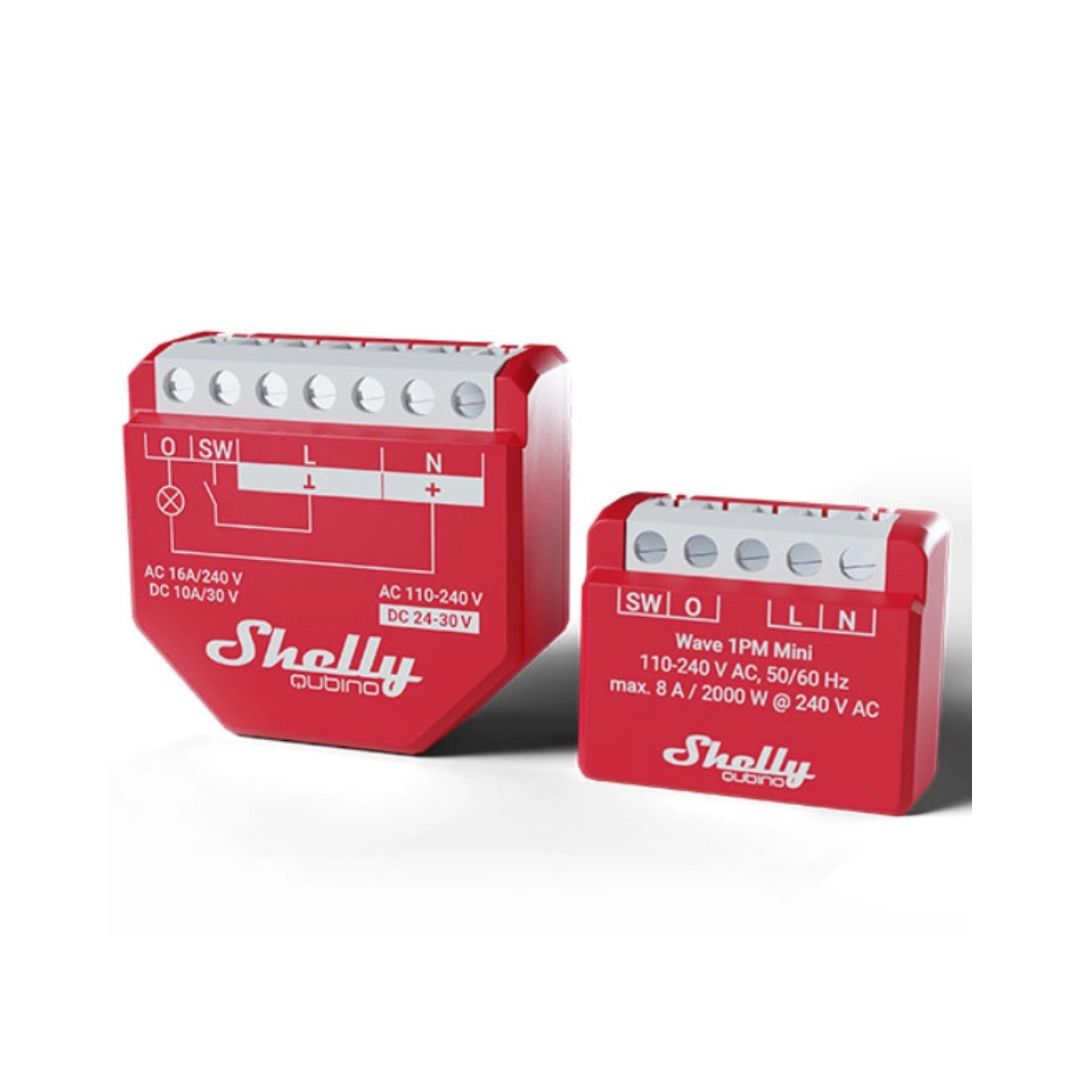

Shelly Qubino Z-Wave 1PM Mini - Z-Wave Smart Module
The Shelly Qubino Wave 1PM Mini is the smallest Z-Wave smart switch in the world, allowing you to automate and remotely control lights and small appliances. Furthermore, it measures precisely the energy consumption, helping with the energy efficiency of your home.
Thanks to its compactdesign, it can be easily installed inside wall boxes or directly in electrical appliances, making them smart. Set up personalized schedules, synchronize with sunrise and sunset and integrate it with other devices for advanced automations.
With Z-Wave 800 series technology, it supports SmartStart for automatic configuration, security Security 2 Authenticated and Over-The-Air (OTA) firmwareupdates, ensuring reliability, security and ease of use.
The Z-Wave is a protocol de comunicação sem fio projetado para automação residencial, garantindo conexões estáveis, seguras e de baixo consumo energético entre dispositivos inteligentes. Operando em uma frequência dedicada, reduz interferências com redes Wi-Fi e Bluetooth, oferecendo maior alcance e confiabilidade. Além disso, utiliza uma network in mesh (mesh), where the devices communicate with each other to extend coverage and improve system efficiency.
Product features:
Brand: Shelly
Model: Qubino Z-Wave 1PM Mini
Communication Protocol: Z-Wave™ (868.4 MHz)
Power Supply: 110 - 240V AC, 50/60 Hz
Material: Plastic
Weight: 18g
Dimensions: 29x35x16 mm
Power measurement: Yes
Energy consumption: < 0.3W
Relay:
• Maximum AC switching voltage: 240V
• Maximum AC switching current: 8A
• Maximum AC switching power: 2000W
Protections: Overheating and overload
Z-Wave:
• Range: Up to 40m indoors (depending on local conditions)
• CPU: Z-Wave® S800
• Z-Wave® repeater: Yes
• RF power: < 25 mW
Mounting: Wall box
Terminals:
• Maximum torque of screw terminals: 0.4 Nm
• Conductor cross section: 0.5 to 1.5 mm² (20 to 16 AWG)
• Stripped conductor length: 5 to 6 mm
Environmental:
• Operating temperature: -20°C to 40°C
• Humidity: 30% to 70% RH
• Maximum altitude: 2000m
Color: Red
1 x Shelly Qubino Wave 1PM Mini
1x Instruction Manual
