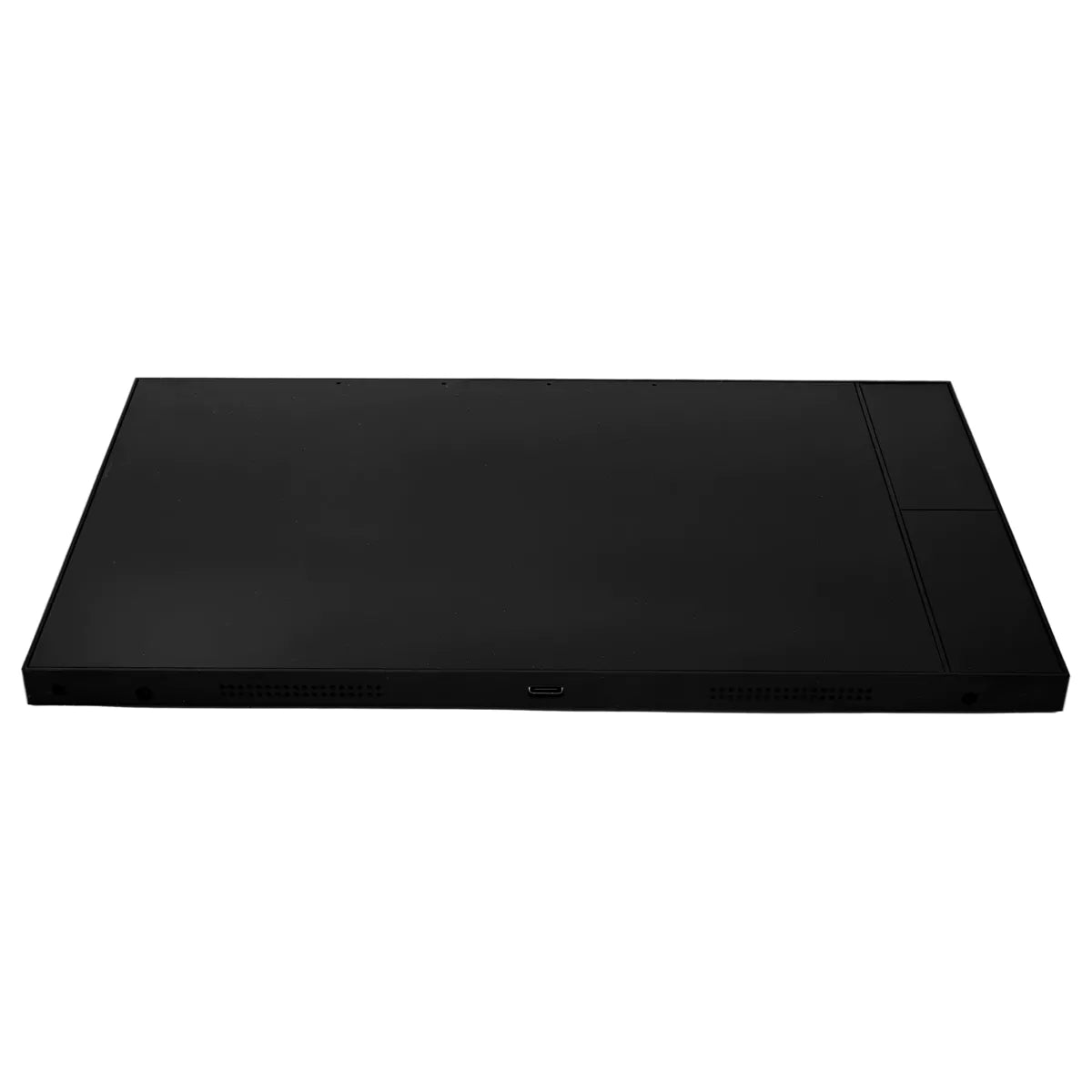

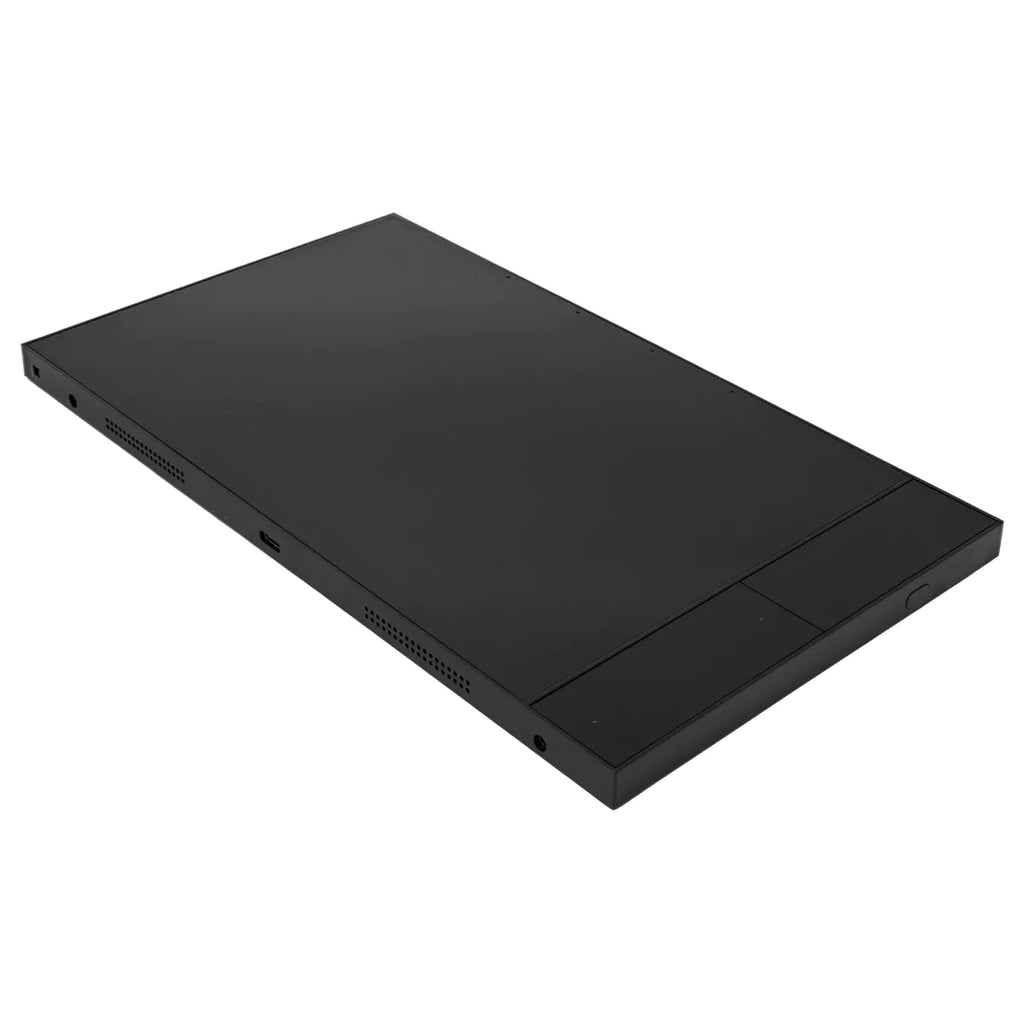

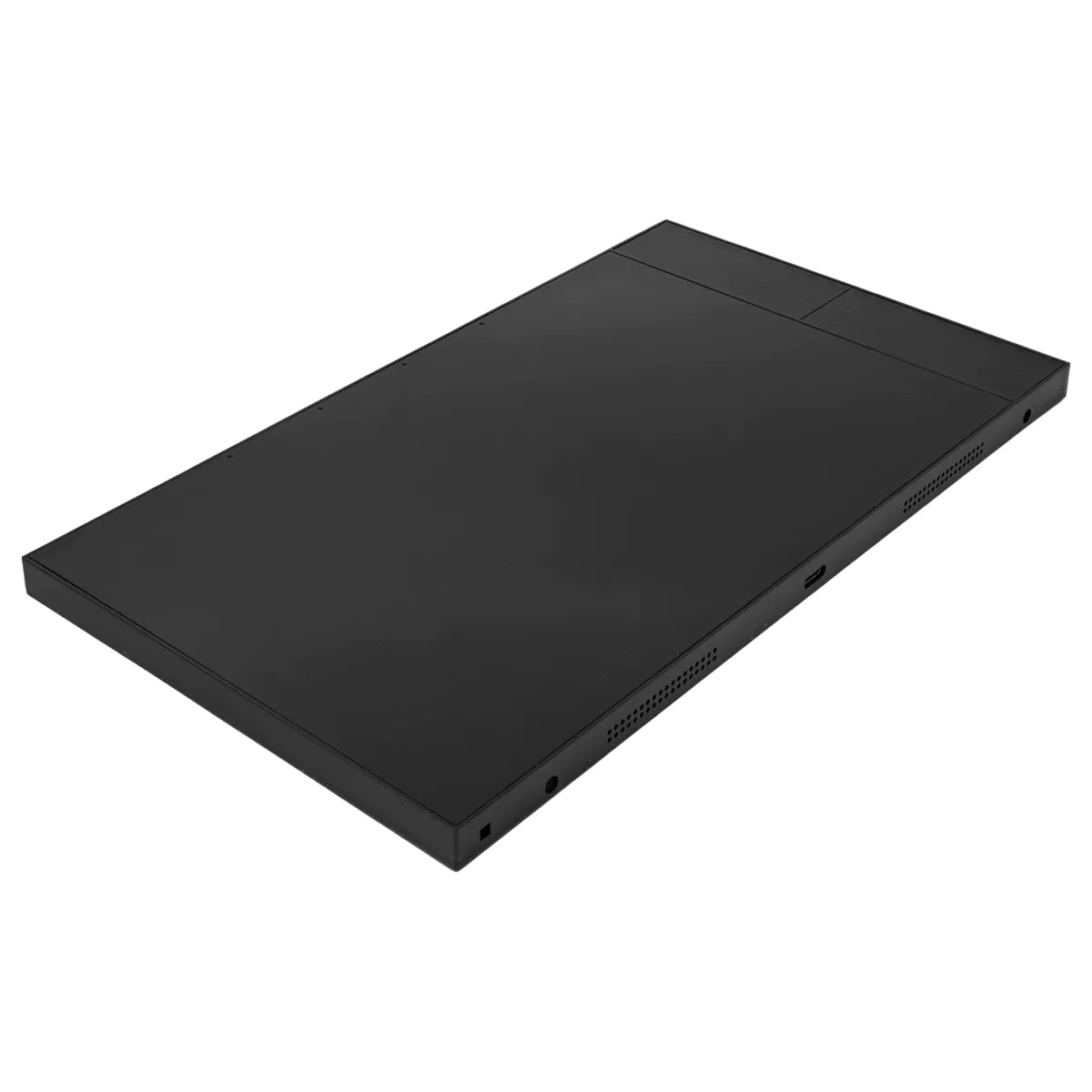

Shelly Touch panel with 10.1" screen in Black WiFi Bluetooth - Wall Display XL
The Shelly Wall Display XL is a smart control panel with a 10.1-inch touch screen, developed to centralize the management of all Shelly devices and home automations. Equipped with four customizable buttons and an integrated relay, it allows controlling lights, climate, roller shutters, and other equipment from a single location. Ideal for houses, apartments, hotels, and commercial spaces, it combines an elegant design with high performance and modern connectivity, supporting WiFi 6 and Bluetooth 5.4.
Main features:
10.1” color touch screen with HD resolution (1280x752 px)
Rockchip RK3566 quad-core processor, fast and responsive
Direct integration with Home Assistant and Shelly Smart Control
Compatible with standard European installation boxes (flush-mounted in wall)
Integrated relay for load control up to 1500 W (240 V~, 5 A)
4 programmable physical buttons for quick control of devices or scenes
Integrated stereo speakers (2 × 2 W) with support for Bluetooth and Sonos
Dual-band WiFi 6 connectivity (2.4 GHz and 5 GHz) and Bluetooth 5.4
Built-in proximity and luminosity sensors
Energy consumption monitoring of connected Shelly PM devices

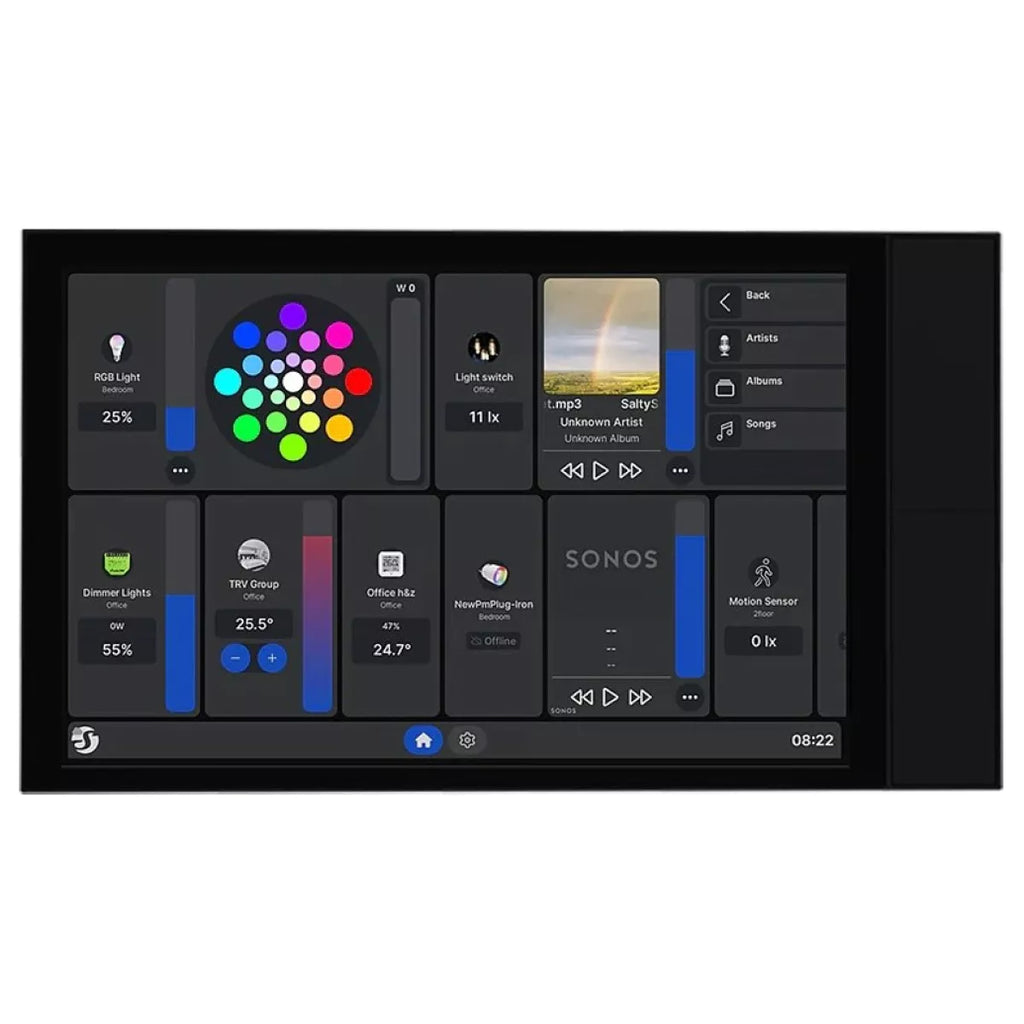

Customizable interface and home screen (widgets, shortcuts, groups, and scenes)
Integrated multimedia playback and online radio
Android 11 operating system, with 2 GB of RAM and 16 GB of internal storage
Simple installation, with a modern design suitable for both domestic and professional use
Specifications:
Model: SAWD-3A1XE10EU2
Screen and Interface
- Type: 5-point capacitive touch (G+FF)
- Resolution: 1280 × 752 px
- Physical buttons: 4 customizable + 1 screen On/Off power button
- Volume control and assignable relay
- Sensors: proximity (≤1 m) and luminosity (lux)
- Microphone: integrated 4-microphone array
- Built-in speakers: 2 × 2 W (BOX type acoustic cavity)
Processing and System
- CPU: Rockchip RK3566, Quad-Core Cortex-A55
- RAM: 2 GB
- Storage: 32 GB
- Operating system: Android 11
Communications
- WiFi: WiFi 6 Dual Band (2.4 GHz and 5 GHz)
· RF Power: < 20 dBm
· Range: up to 30 m indoors / 50 m outdoors
- Bluetooth: 5.4
· Band: 2402 – 2480 MHz
· RF Power: < 4 dBm
· Range: up to 10 m indoors / 30 m outdoors
- Support for MQTT, Webhooks and integration with Home Assistant
Software Features
- Support for up to 20 schedules
- Up to 20 webhooks (5 URLs per action)
- Energy monitoring via Shelly Smart Control
- Full remote control through the mobile application
- No support for scripts

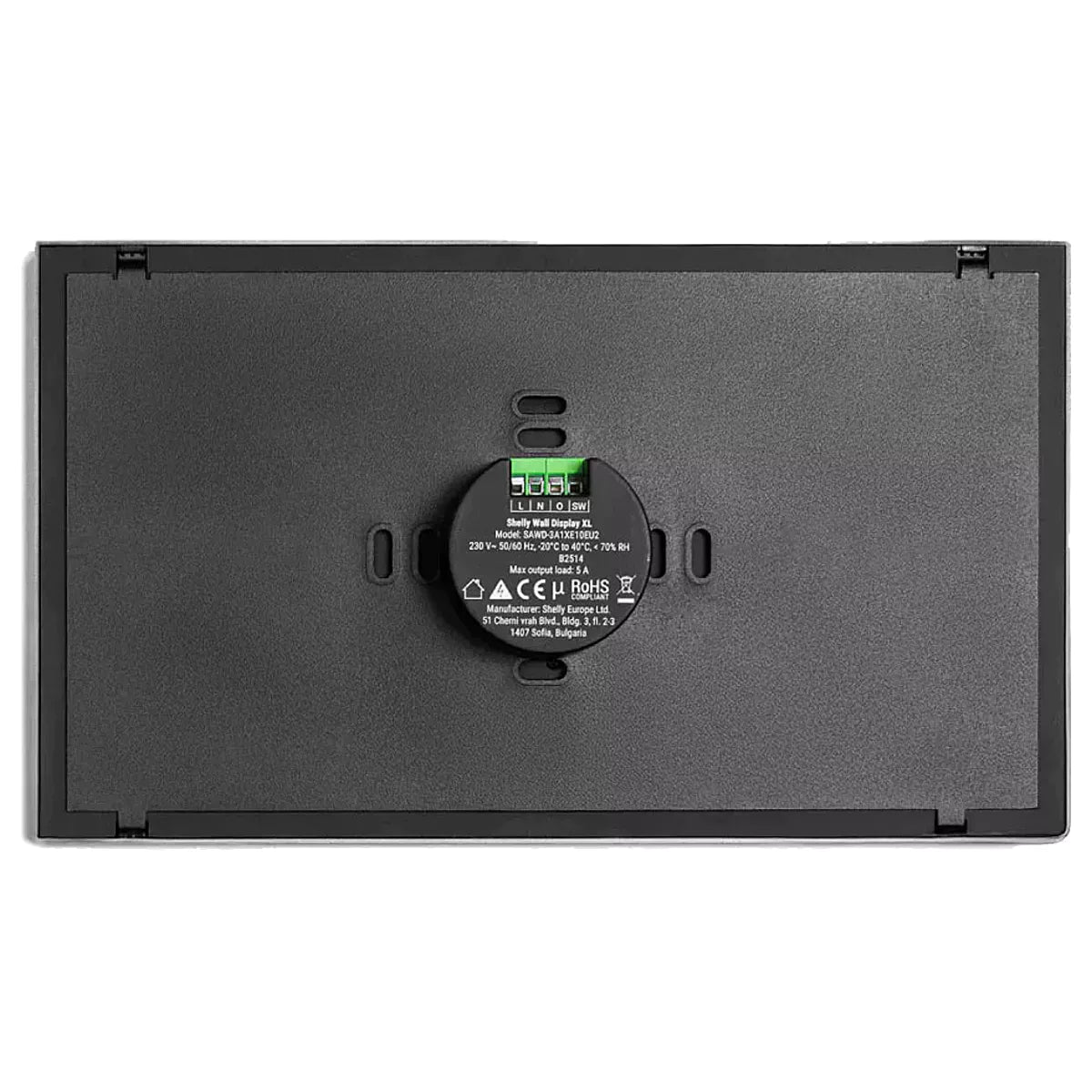

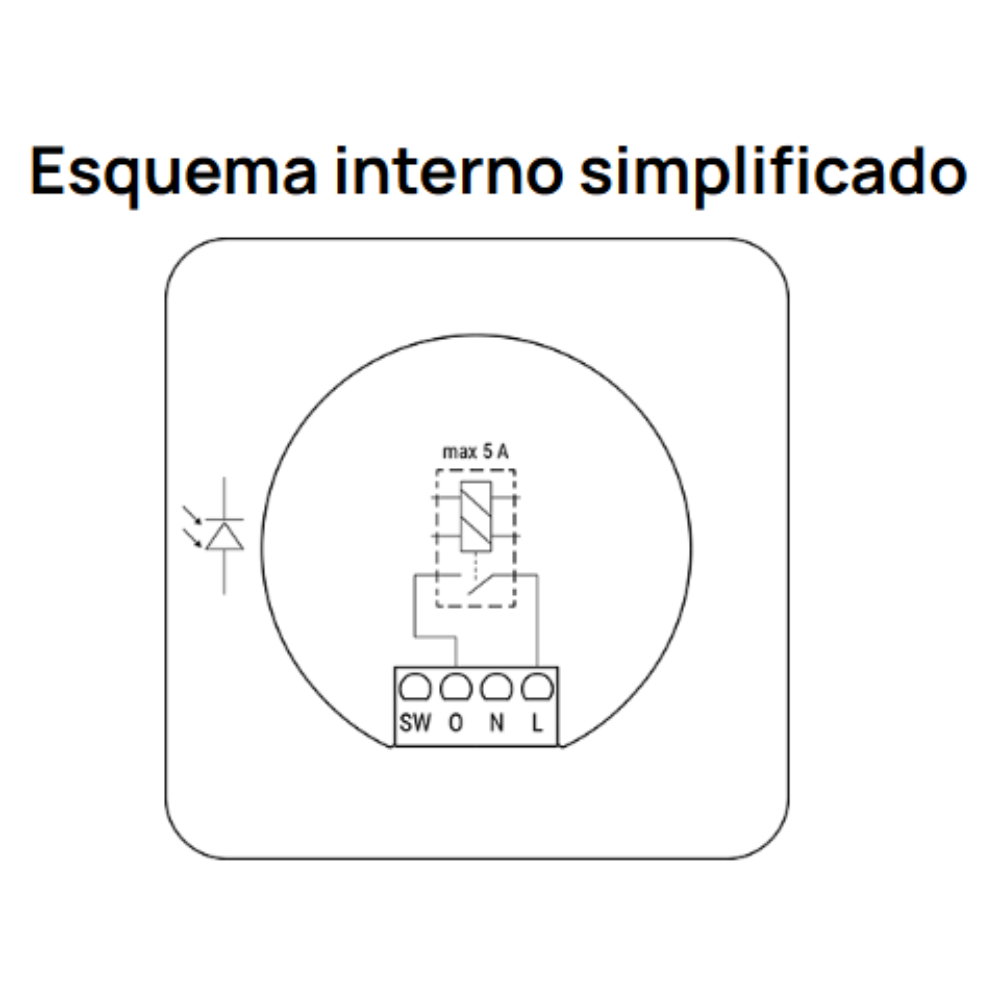

Inputs and Outputs
- Inputs:
· 1 input for switch/push button (screw terminal)
· 2 power inputs: N and L
- Outputs:
· 1 relay (max. 240 V~, 5 A)
- USB Type-C output: 5 V⎓ / 0.5 A
Power Supply
- Input voltage: 100 – 240 V~ 50/60 Hz
- Consumption: < 15 W
- Alternative power: USB-C 5 V⎓ / 3 A
- Supported load types: resistive, capacitive and inductive
- Thermal protection against overheating
Environmental Conditions
- Operating temperature: –20 °C to +40 °C
- Humidity: 30 % – 70 % RH
- Maximum altitude: 2000 m
Physical Construction
- Dimensions: 155.8 × 272.5 × 38.3 mm
- Weight: 920 g
- Material: stamped metal, coated polycarbonate and glass

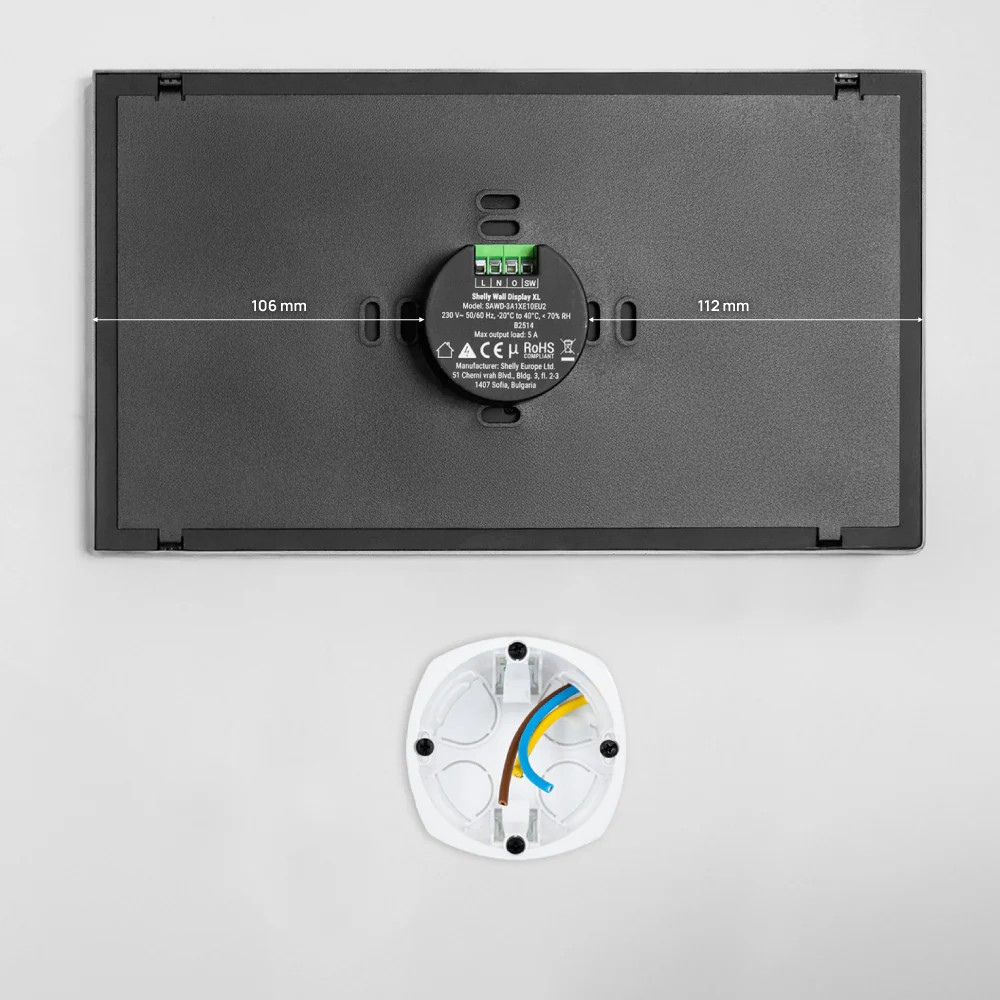

- Mounting: flush-mounted in standard EU wall box
- Color: black
Package content:
1 × Shelly Wall Display XL
1 × Mounting bracket and screws
1 × Multi-language installation and safety guide
Notes:
The device does not include internal temperature or humidity sensors.
Supports Home Assistant, MQTT and Shelly Smart Control, but is not directly compatible with Alexa, Google Home or SmartThings.
The manual recommends installation in a standard wall box (60 mm).
Requires neutral (N) and live wire (L).
It is advisable to protect the power supply with a device against overvoltage or current peaks.
Reference: SHWDXLPR
Barcode: 3800238073008
