Description

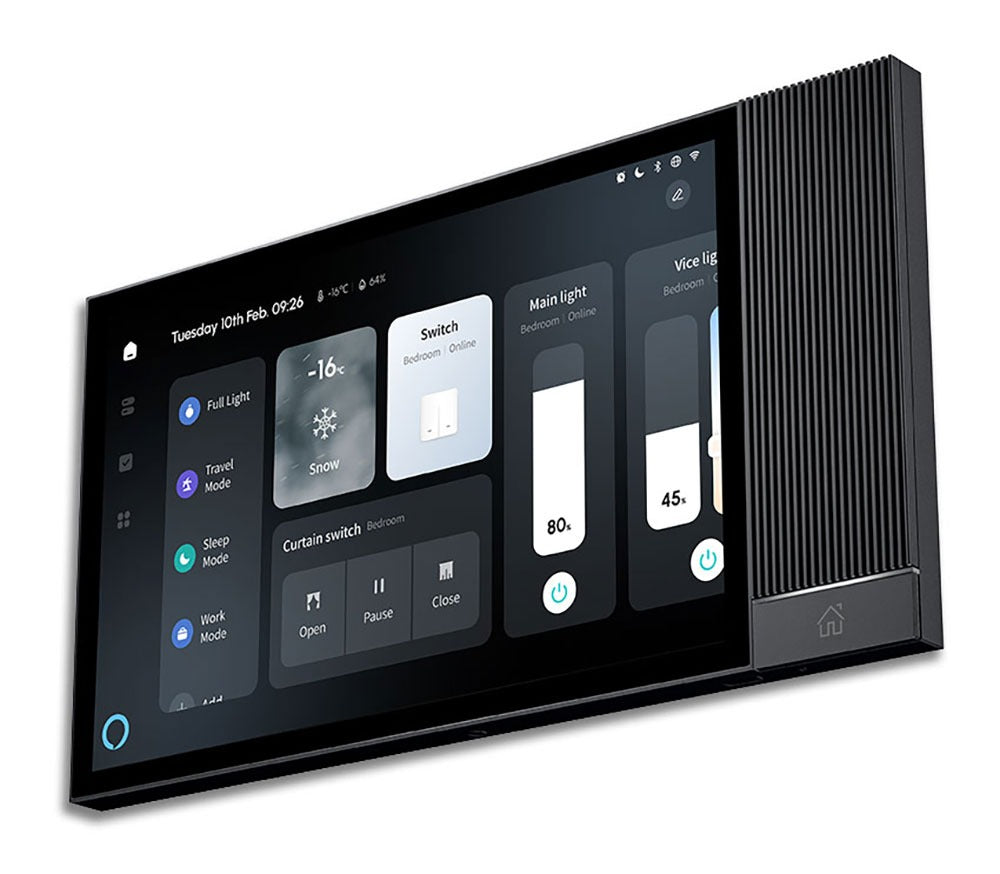

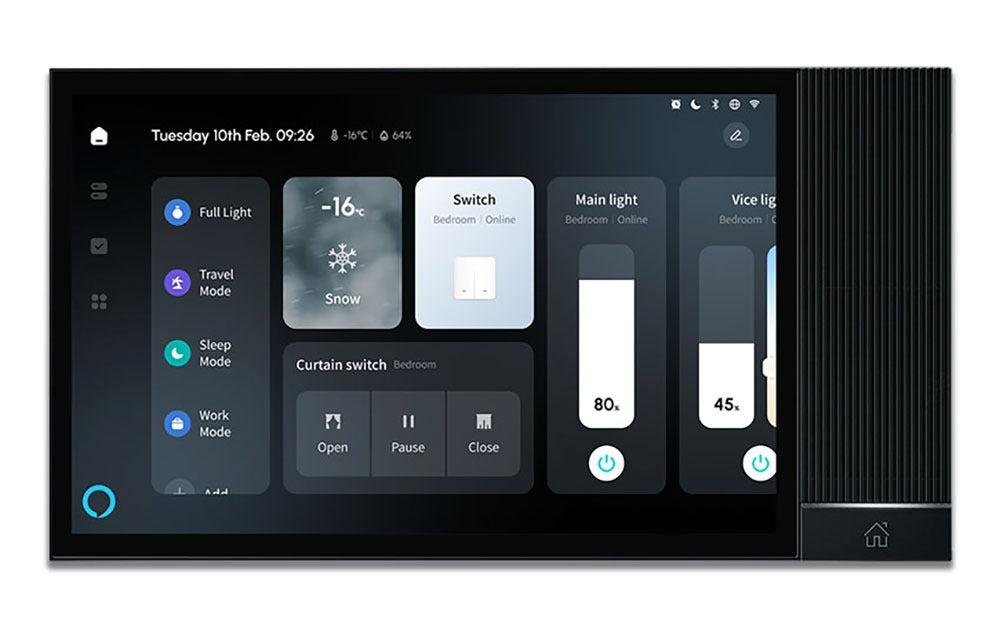

8" Smart Control Panel with Alexa and Zigbee Integrated
The control center of your smart home on a wall-mounted touchscreen
The Smartify smart control panel is the command center for your entire Tuya home. With an 8-inch IPS touchscreen, integrated Alexa, and built-in speaker, this panel replaces your traditional switch with a complete smart home experience. Control lights, air conditioning, roller shutters, music, and all your Tuya devices directly on the screen, without needing your phone. It works as a Zigbee hub, eliminating the need for additional gateways for your Zigbee devices.
Main features
8" HD IPS touchscreen: 1440x720 resolution with a fluid and responsive interface. Customize the main screen with the devices and scenes you use most for more direct control.
Alexa integrated: Control your home by voice without needing a separate Echo. Ask to turn on the lights, lower the roller shutters, or play music.
2x2W built-in speaker: Play music directly on the control panel. Works as an amplifier for ambient sound.
Integrated Zigbee hub: Compatible with sensors, switches, and other Tuya Zigbee devices, eliminating extra gateways.
Amplifier: Control your speakers from here!
WiFi 5G: Fast and stable connection to 2.4GHz and 5GHz WiFi networks.
Installation in 86x86 box: Standard European fit, replaces a traditional wall switch.
Usage example
Imagine walking into your home and, with one touch on the wall panel, turning on the living room lights, setting the AC to the ideal temperature, and starting to play your favorite playlist. Or, use your voice with the integrated Alexa: "Alexa, good night" and all the lights turn off, the roller shutters close, and the alarm arms. All without picking up your phone.
Product characteristics
Brand: Smartify
Model: ZHUB-8LCD-ALEXA
Screen: 8" IPS, 1440x720
Processor: High-performance Quad-core
Memory: 2 GB RAM + 16 GB ROM
Connectivity: WiFi 2.4GHz/5GHz, Zigbee
Power supply: 100-240V AC, 50/60 Hz
Rated current: 74 mA
Audio: 2 2W built-in speakers with amplifier
Dimensions: 127.5 x 233.5 x 38 mm
Installation: 86x86 mm wall box
App: Smart Life/Tuya (iOS and Android)
What's in the box
1x Smartify 8" touchscreen control panel
1x Mounting bracket
1x Fixing screws
1x Instruction manual
Reference: SYPCT8WFA
