Description
Smart Touch Switch with RGB, Vibration and Sound with 4 channels Sonoff
The Sonoff TX Ultimate T5 is much more than a switch. With a capacitive touch panel, customizable RGB LED lights on the edge, vibration and sound feedback, it transforms your home control into an interactive experience. The T5-4C-86 model is the 4 gang version for the standard 86mm European flush-mounted box.
Main Features
✔ 4 independent channels - Control up to 4 lighting circuits or smart curtains with adjustable opening percentage
✔ Customizable RGB LED lights - Choose the color and light effect for each gang. It can serve as a night light or ambient lighting
✔ Tactile feedback with vibration and sound - Each touch is confirmed with customizable vibration and sound
✔ Control smart curtains - Dual mode: works as a light switch or as a roller shutter/curtain controller with opening percentage
✔ WiFi 2.4GHz - Connects directly to the router, without an additional Hub or Bridge
✔ Compatible with Alexa and Google Home - Control your circuits by voice
✔ Timing and schedules - Set up daily routines, countdowns, and automatic schedules
✔ Device sharing - Share control with family or friends without reconfiguration
✔ Smart scenes - Integrates with other Sonoff devices for complete automations
Usage Example
Install the switch in the existing 86mm flush-mounted box (requires neutral wire). Connect it to the WiFi via the eWeLink app and control the lighting by phone, by voice with Alexa, or directly on the touch panel. Customize the LED color of each gang to know from a distance which light is on. Ideal for rooms with multiple lighting circuits or for controlling smart roller shutters and curtains.
Product Specifications
Brand: Sonoff

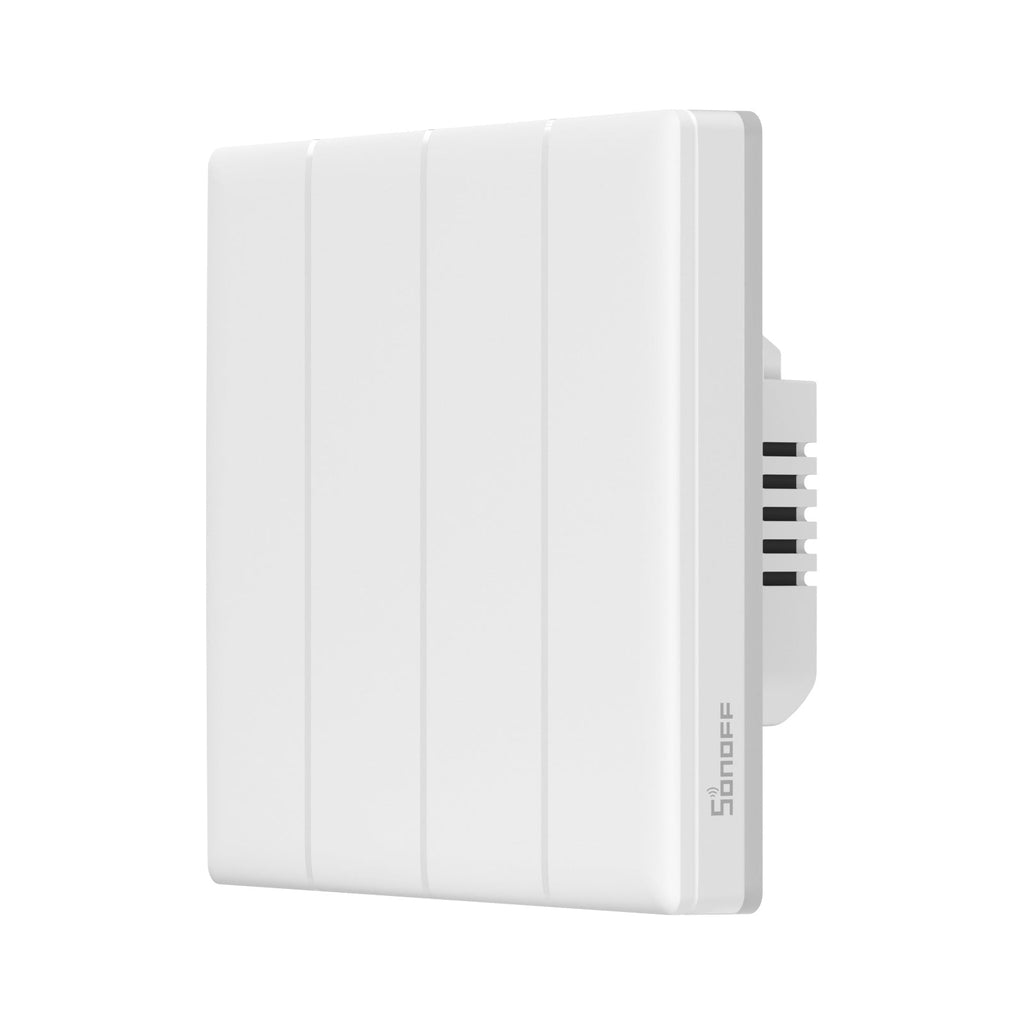

Model: T5-4C-86 (TX Ultimate)
Type: 4 gang flush-mounted touch switch
Format: 86mm (European standard)
Power Supply: 90-250V AC, 50/60Hz
Connectivity: WiFi 2.4GHz (802.11 b/g/n)
App: eWeLink (iOS and Android)
Compatibility: Alexa, Google Home, SmartThings
Control: Capacitive touch with vibration and sound feedback
LED: Customizable RGB on the edge of each gang
Weight: 252g
Requires: neutral wire
What's in the box
1x Sonoff TX Ultimate T5-4C-86
1x Instruction manual
1x Installation kit
Barcode: 6920075740271
Reference: SOTX54C86
