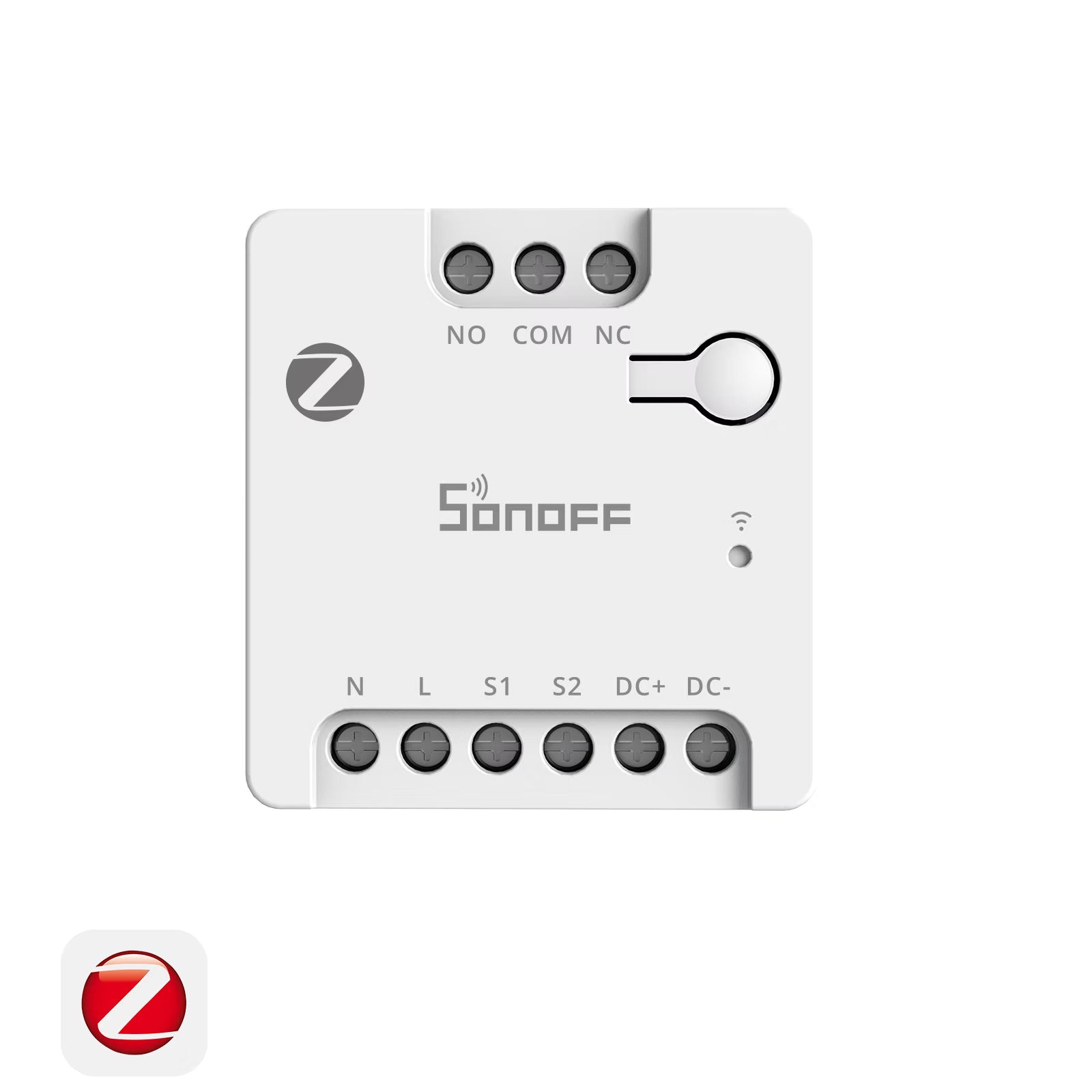

Sonoff MINI-ZBD - Zigbee 3.0 Dry Contact Relay AC/DC
Smart control for gates, boilers, motors and much more

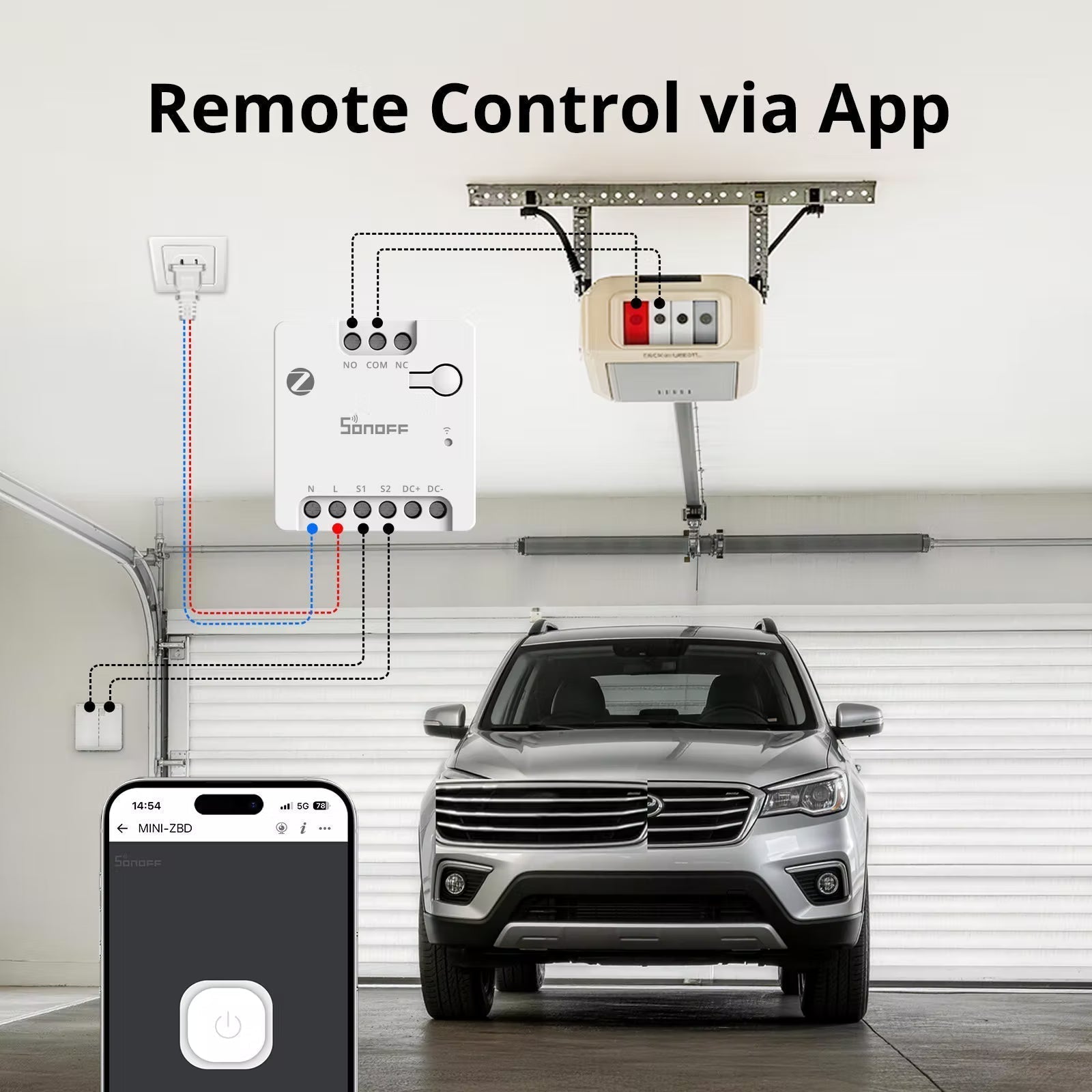

The Sonoff MINI-ZBD is a smart Zigbee 3.0 relay with dry contact output (NO/NC) and AC/DC power input. Compact and versatile, it remotely controls garage gate motors, boilers, solenoid valves, pumps, DC motors and any equipment with a dry contact input.
It supports 100-240V AC or 12-48V DC power, making it ideal both for traditional electrical installations and for low-voltage projects with batteries or solar panels.
It works as a Zigbee repeater, expanding the coverage of your mesh network to eliminate signal dead zones.
Main features
- NO/NC dry contact relay for safe control
- Dual power supply: 100-240V AC or 12-48V DC
- Compatible with Alexa, Google Home and Zigbee hubs
- Remote control, scheduling and smart scenes via the eWeLink app
- Support for external contactor for high-power expansion
- Zigbee repeater function for better mesh coverage
- Input for external switch (rocker or momentary)
- Ideal for gates, boilers, pumps, irrigation, HVAC
Technical specifications
Model: MINI-ZBD
MCU: EFR32MG21
Power supply: 100-240V~ 50/60Hz 0.1A Max OR 12-48V DC 1A Max
Load: 24V=2A Max resistive load OR 12/24V=8W
Connectivity: Zigbee 3.0 (IEEE 802.15.4)
Weight: 35.3 g

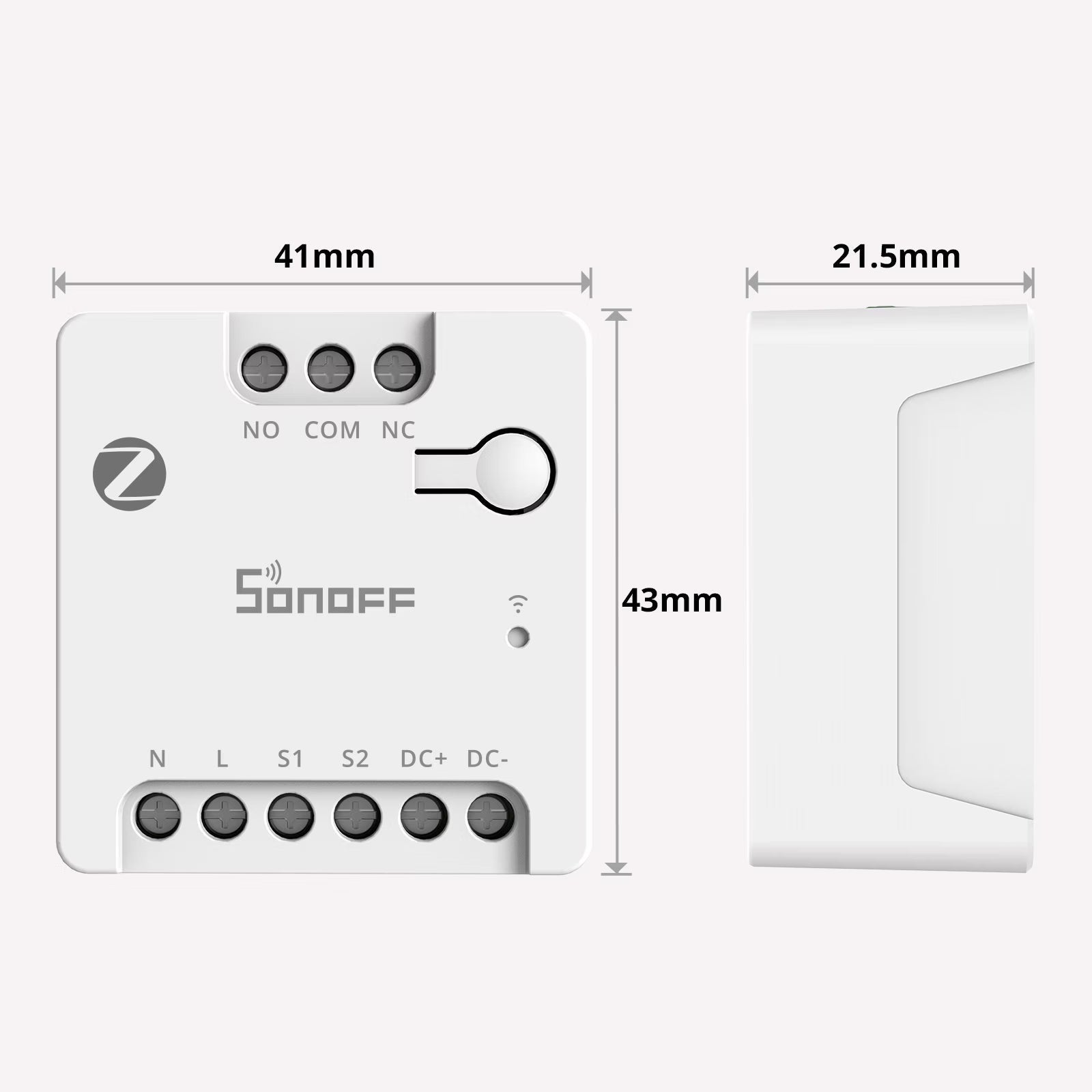

Dimensions: 41 x 43 x 21.5 mm
Material: PC
Color: White
Operating temperature: -10°C to 40°C
Humidity: 5% to 95% RH, non-condensing
Certification: CE / FCC / RoHS
Location: Indoor
Wiring: 18AWG to 14AWG (0.75mm² to 1.5mm²)
Barcode: 6979033600713
Reference: SONMINIZBD
Package contents
- 1x Sonoff MINI-ZBD
- 1x User manual
