Description

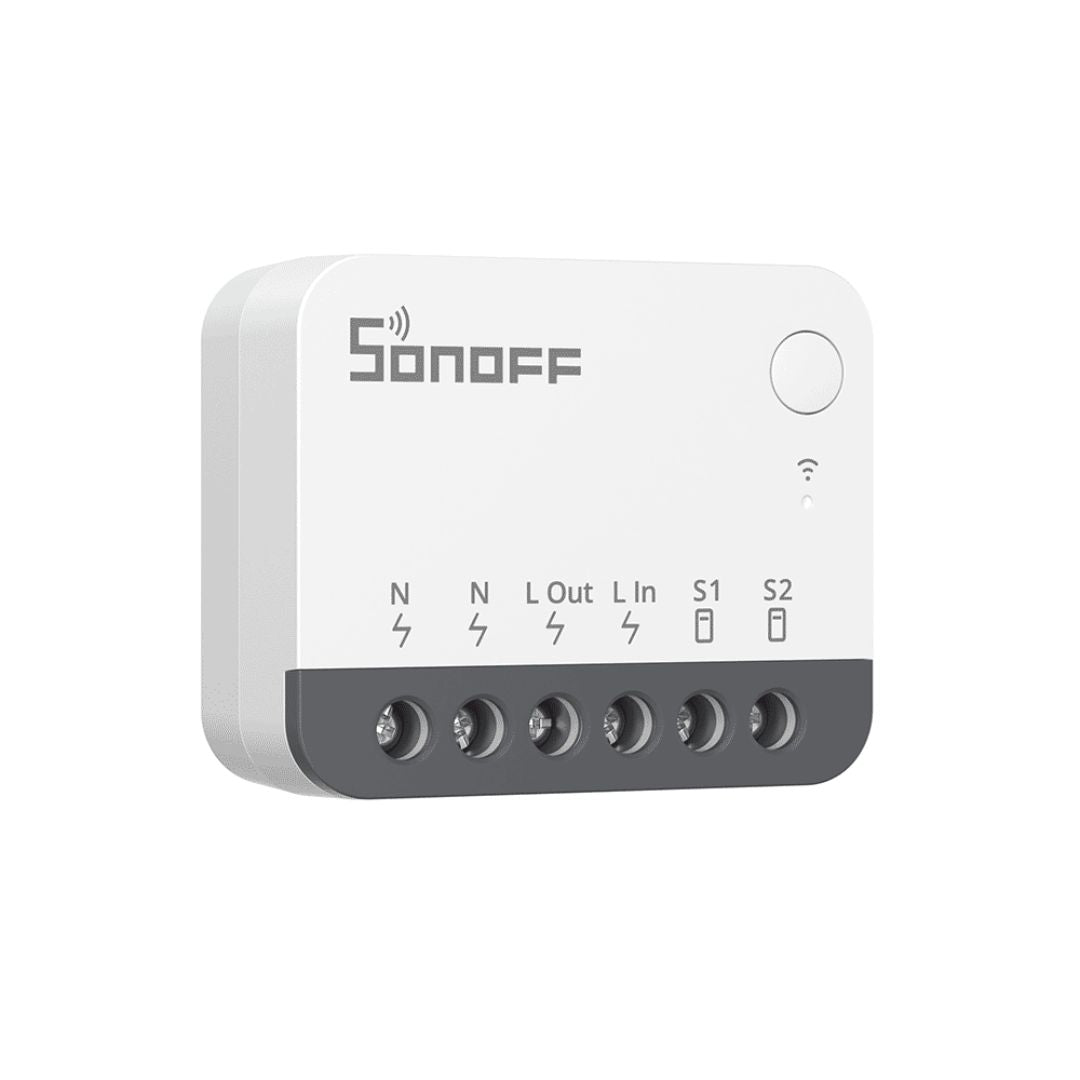

Smart Switch SONOFF ZB MINI R2 Extreme Zigbee 3.0
The SONOFF ZBMINIR2 Extreme is a compact smart switch, based on the Zigbee 3.0 protocol, which can be installed in standard EU/86/120 mounting boxes. Supporting a maximum load of 10A, it is compatible with various types of external switches, allowing you to transform traditional switches into smart ones, providing greater convenience and control in your home.
This device requires a Zigbee hub, such as the SONOFF NSPanel Pro, SONOFF iHost, or Philips Hue, to function. It acts as a Zigbee router, supporting up to 64 sub-devices, strengthening the signal and expanding coverage, which makes your Zigbee network more reliable and robust. Additionally, the ZBMINIr2 Extreme is compatible with third-party open-source platforms such as Home Assistant and Zigbee2MQTT.
The switch offers advanced features like 'Detach Mode', which keeps smart light bulbs powered even when the external switch is off, and the 'Power-on Delay' function, which protects against damage caused by high currents after a power failure. Test data from SONOFF laboratories indicate that, in an open environment and in Turbo Mode, the communication distance of the ZBMINIR2 Extreme can reach up to 200 meters, five times more than the ZBMINIR2 model. The specific range may vary depending on the actual usage environment. Simple integration with Zigbee hubs makes it the ideal choice for home automation.
Product features:
Brand: Sonoff
Model: ZBMINIR2 Extreme
Communication Protocol: Zigbee 3.0
Voltage: 100-240VAC 50/60HZ
Max. Load: 10A/2200W
2-way control: yes, allows use with two-way switches (US: 3-way)
Operating systems: Android and iOS
Material: PC V0 (Flame-retardant material)
Weight: 26.7g

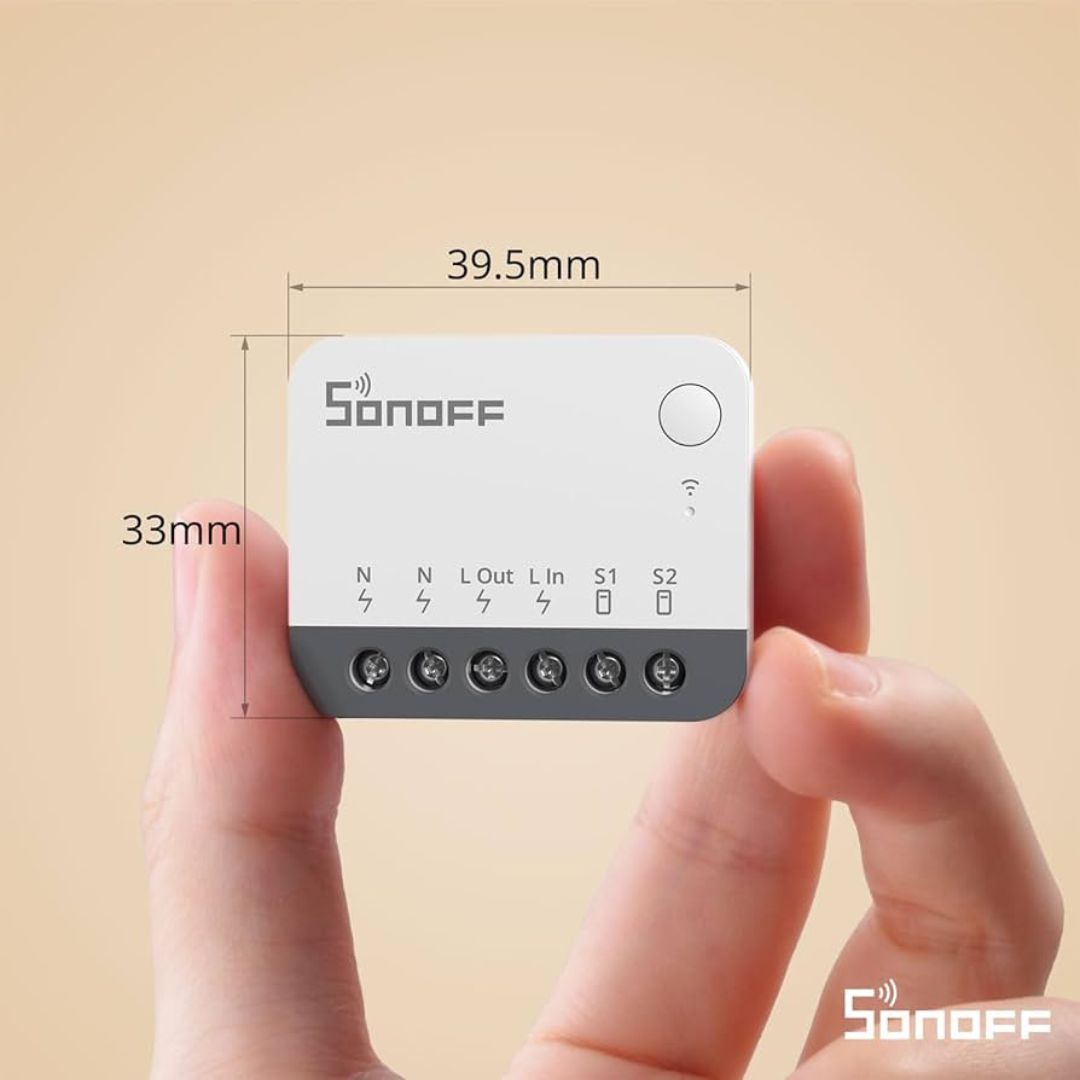

Dimensions: 39.5 x 33 x 16.8 mm
Neutral wire required: Yes
Zigbee Function: Router
Supported Sub-devices: Up to 64
Turbo Mode: Yes
Works with: Alexa , Google Assistant , Samsung SmartThings , Yandex Alice

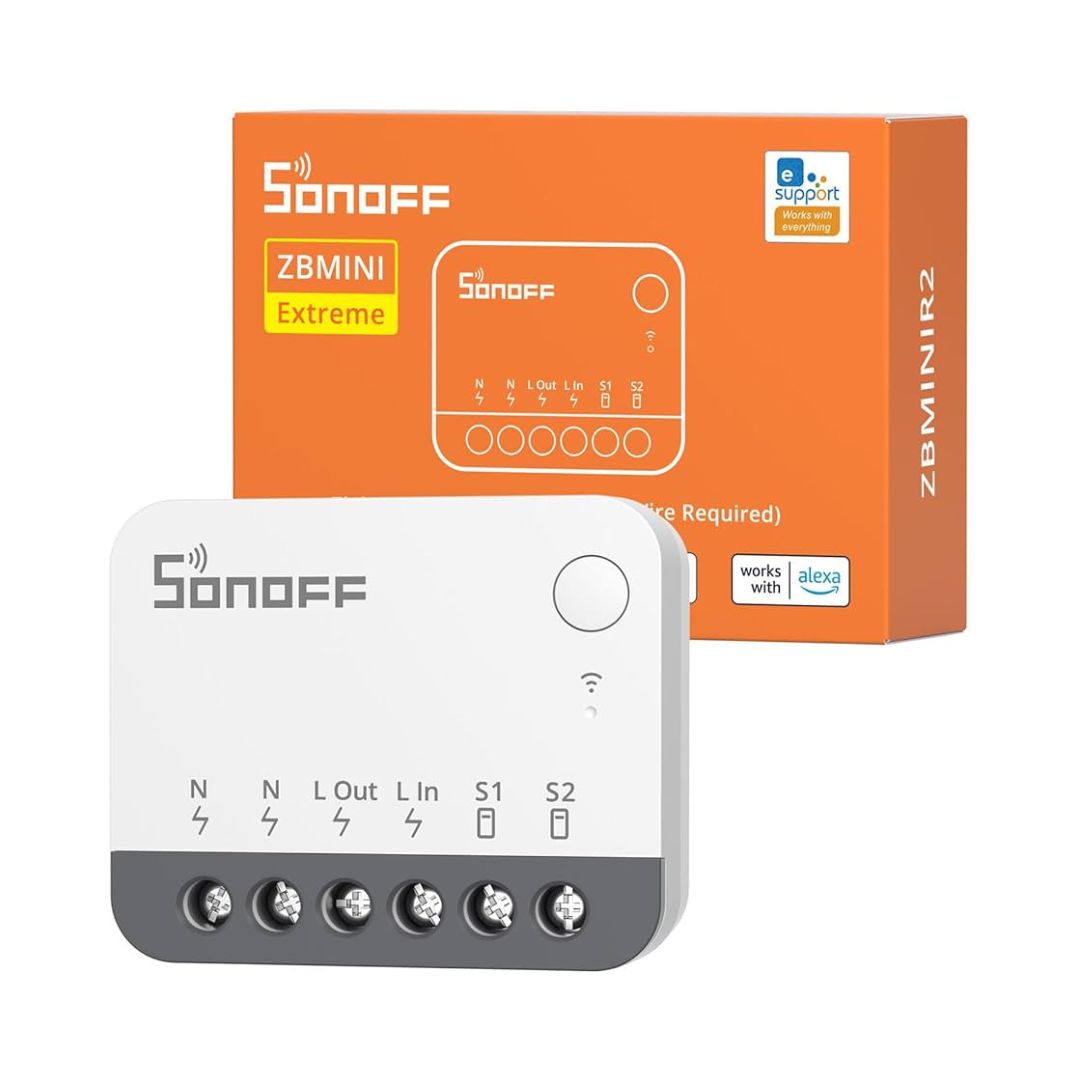

Includes:
1 x SONOFF ZBMINI Extreme
1 x Instruction Manual
Barcode: 6920075743142
Reference: SNZBMINIEXT
