Description

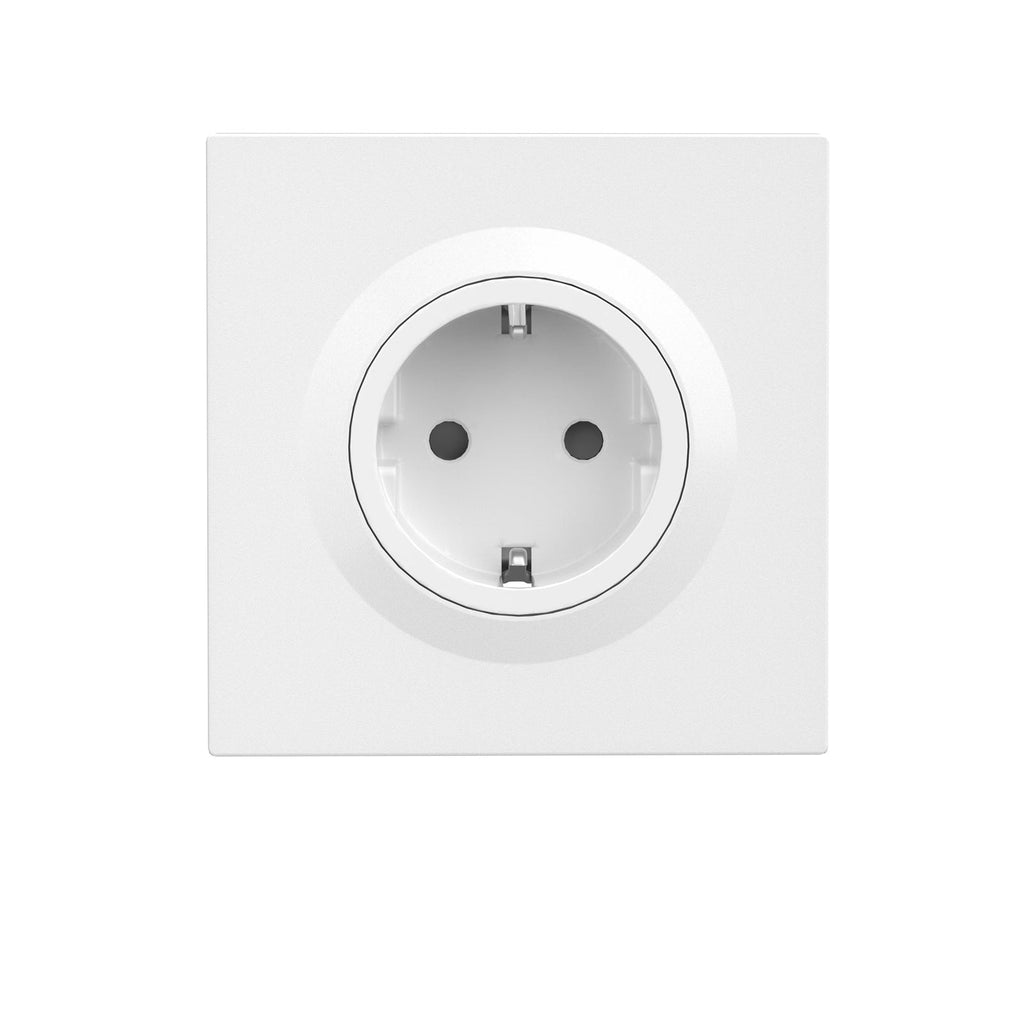

Non-Smart Schuko Wall Socket - Fusion Series
The Sonoff WS01STPF-E is a traditional (non-smart) wall socket from the Fusion series, with a Type F (Schuko) connection. Ideal for installations where smart control is not required, but where safety and aesthetic compatibility with the Fusion series are important.
✨ Built with heat-resistant fire-retardant material, internal copper alloy components that withstand up to 20,000 connection cycles, and integrated child protection in each opening.
✔ Fire-retardant and heat-resistant housing
✔ Corrosion resistance tested in a salt spray chamber
✔ Internal copper alloy components (20,000 cycles)
✔ Child protection with safety shutters
✔ Maximum load of 16A / 4000W
✔ Compatible with Sonoff Fusion series wall frames (Orb-2Gang, Orb-3Gang)
Compatibility with the Fusion Series
This socket integrates perfectly into the Sonoff Fusion modular system, allowing it to be combined with smart switches from the same series for a visually uniform installation. For a smart switch in the same row, check the Fusion series modules available at Smartify.
Usage Example

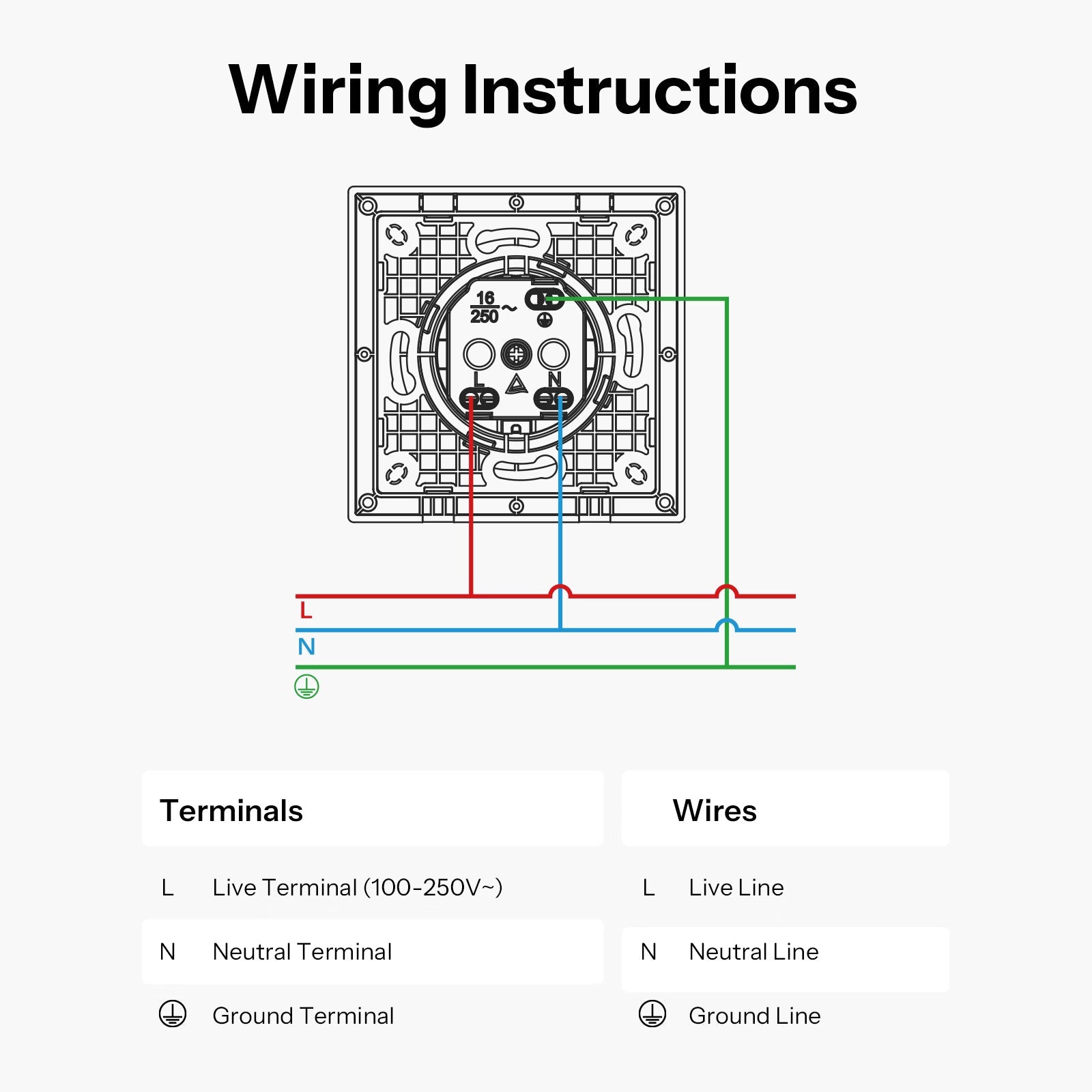

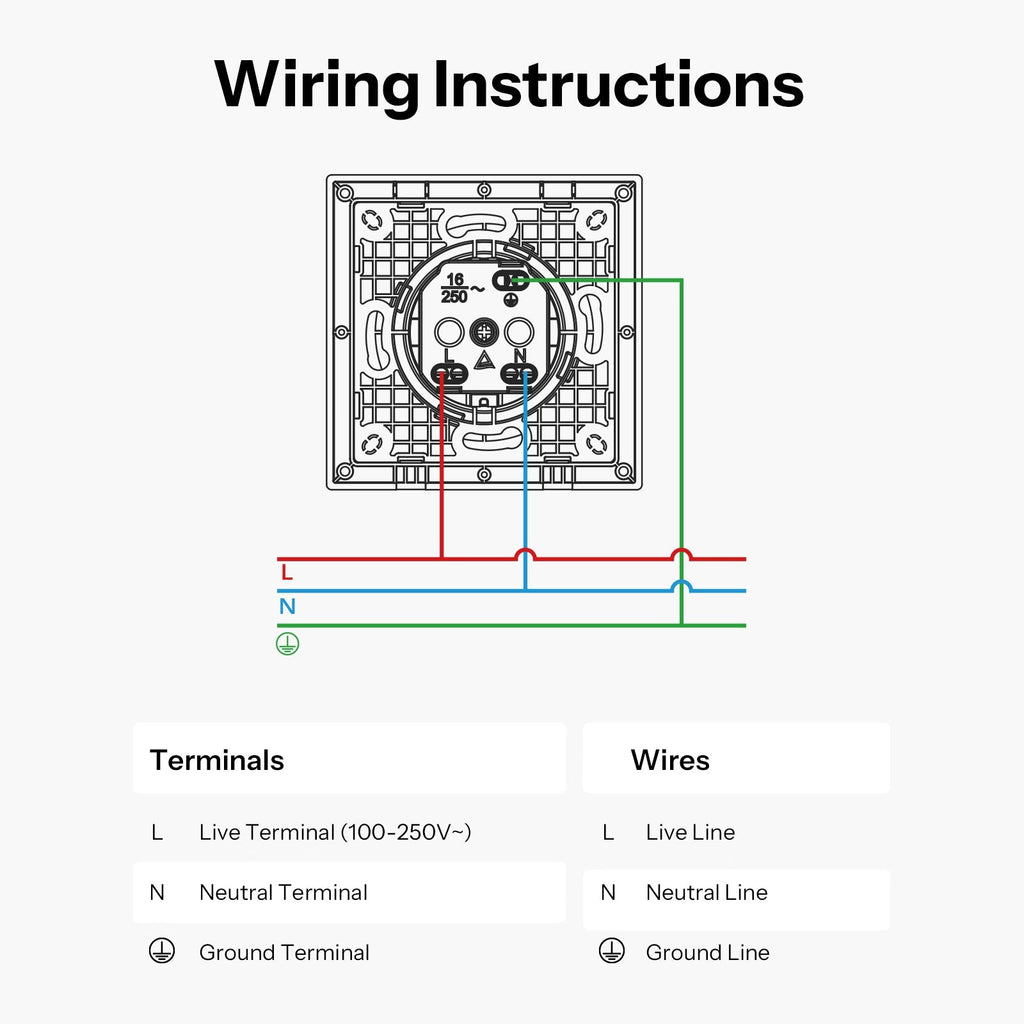

Install the WS01STPF-E socket in a standard flush-mounted box (Type 86 or European 60mm), connect the wires (live wire, neutral, and ground) to the marked terminals, and use it as a stable power point for appliances such as kettles, vacuum cleaners, or routers. Combine it with Fusion wall frames to maintain a uniform aesthetic in the room.

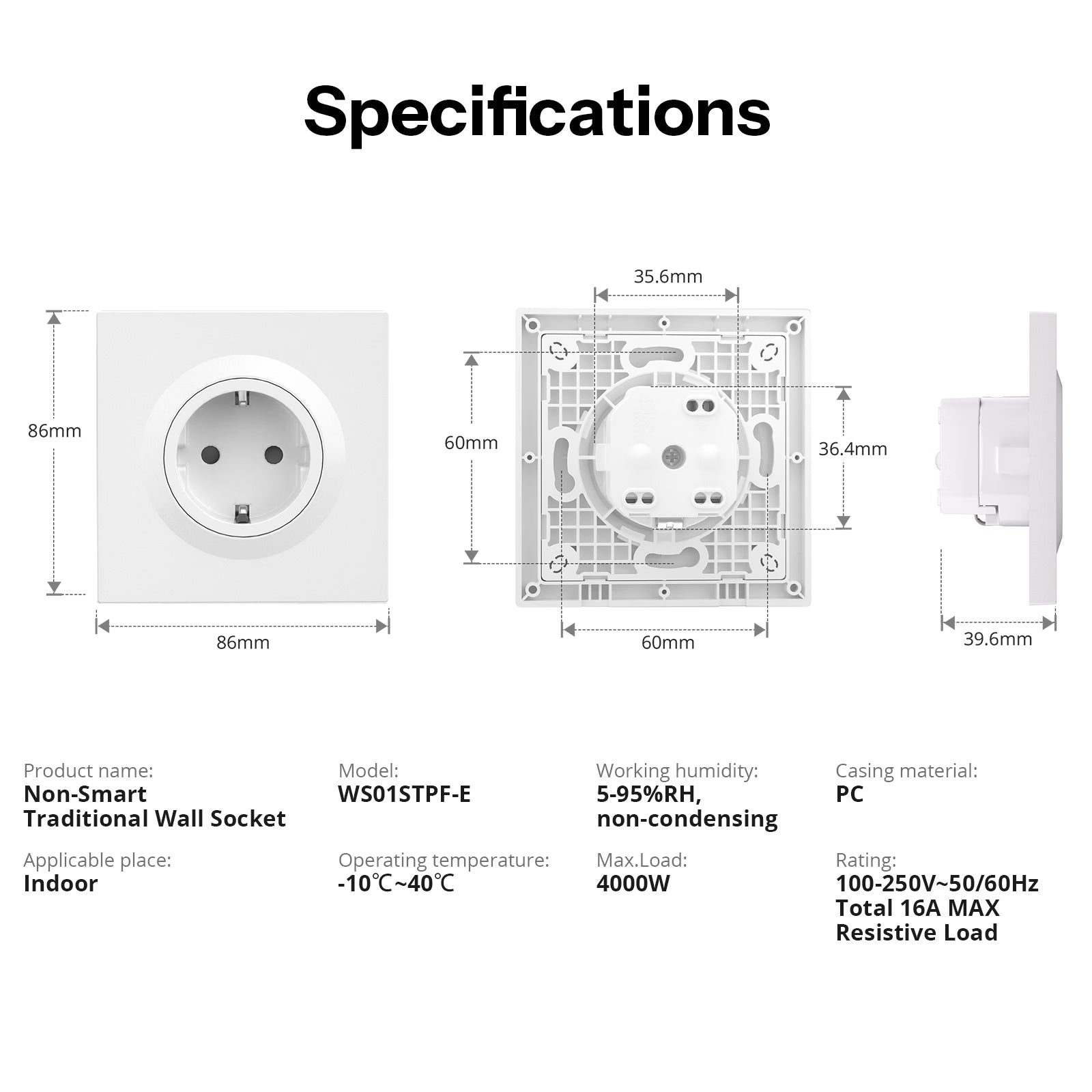

Product Specifications
Brand: Sonoff
Model: WS01STPF-E
Series: Fusion
Type: Traditional wall socket (non-smart)
Connection: Type F (Schuko)
Rated voltage: 100-250V AC, 50/60 Hz
Maximum current: 16A
Maximum power: 4000W
Material: Fire-retardant PC
Internal components: Copper alloy
Operating temperature: -10°C to 40°C
Operating humidity: 5-95% RH (non-condensing)
Dimensions: 86 x 86 x 42.5 mm
Compatible boxes: Type 86, European 60mm

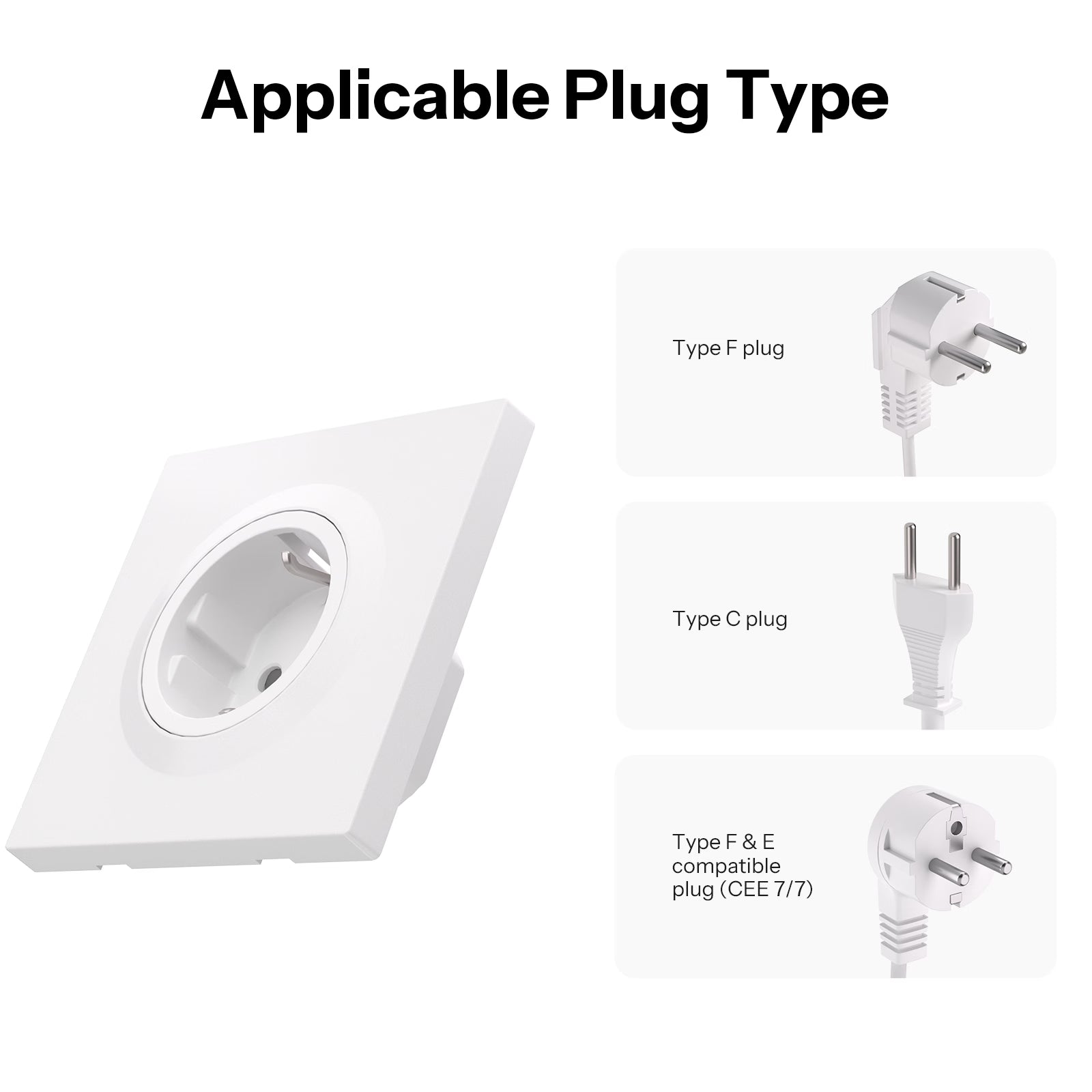

Compatible plugs: Type F, C, F and E (CEE 7/7)
Application: Indoor
What's in the box
1x Sonoff WS01STPF-E wall socket
1x Instruction manual
Barcode: 6979033600195
Reference: SOSMWS01STPFE
